    24V Hydraulic Power Equipment , Mini Pallet Jack DC Rechargeable 1.5T 1485mm Turning Radius

    DC24V Industrial mini electro-hydraulic pallet truck DC rechargeable electro-hydraulic truck 1.5T


    Product profile

    The 24V mini electro-hydraulic pallet truck uses high-quality metal materials, batteries and motors to ensure the overall quality and working life of the equipment. Very suitable for the transport of goods in a narrow area.

    It adopts lithium battery pack and has a long service life. It can work continuously for 4-6 hours to meet the working needs of general enterprises.

    The minimum working height is 80mm, which meets the high requirements of various pallets.

    Multi-function handle, integrating key, power, control signal and operation knob, easy to operate.

    The emergency stop switch quickly cuts off power and power, effectively protecting operators and equipment.

    Intelligent power management, when the power is lower than 10%, it will reduce the driving speed to remind the operator to charge in time.

    The battery and main components are simple in layout and easy to operate and maintain.


    Specifications


    NO.ItemsUnitParameter
    1Model-OE-EPT-ET20
    2LoadKg1500
    3Loaded lengthmm883/946
    4No-load gross weightKg195
    5Wheel type-PU
    6Driving wheelmmφ210*70
    7Load bearing wheelmm2*φ78*60/(2*φ78*88)
    8Balance wheelmm--
    9Front wheel distance (drive end)mm448
    10Rear wheel spacing (load bearing end)mm410/535
    11Hoisting heightmm115mm
    12Operating position heightmm750-1170
    13Fork minimum heightmm80
    14Overall widthmm685/560
    15Overall lengthmm1638
    16Fork widthmm560/685
    17Fork dimensionmm50*150*1150
    18Turning radiusmm1485
    19Walking speed (no-load)Km/h4.5
    20Walking speed (full load)Km/h4
    21Lifting speed(no-load)m/s0.038
    22Lifting speed (full load)m/s0.027
    23Falling speed(no-load)m/s0.039
    24Falling speed(full load)m/s0.059
    25maximum climbing slope(no-load)%16
    26maximum climbing slope (full load)%5
    27Braking type-electromagnetic
    28Driving motor powerKw0.65
    29Lifting motor powerKw0.84
    30Battery capacityAh65
    31Battery voltageV12*2

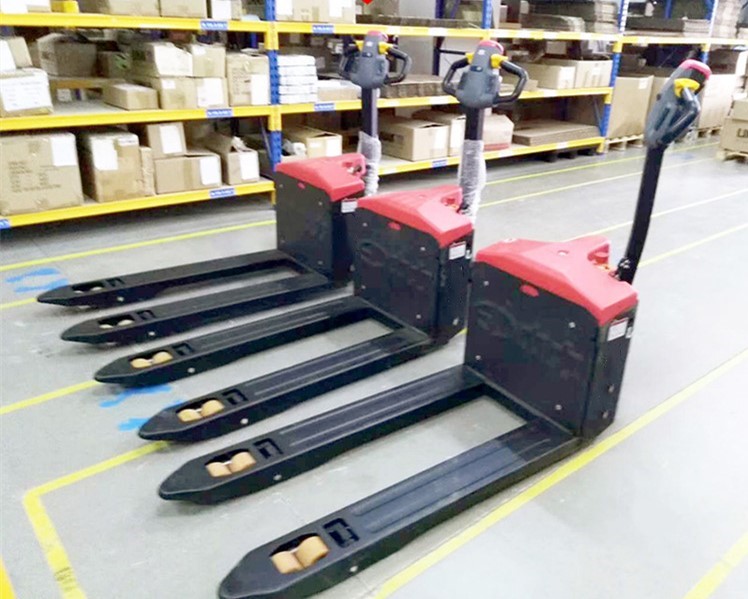

    Product display
