Industrial Hydraulic Power Equipment , Hydraulic Stacker Lift Truck High Capacity

    Buy cheap Industrial Hydraulic Power Equipment , Hydraulic Stacker Lift Truck High Capacity from wholesalers

    Buy cheap Industrial Hydraulic Power Equipment , Hydraulic Stacker Lift Truck High Capacity from wholesalers
    • Buy cheap Industrial Hydraulic Power Equipment , Hydraulic Stacker Lift Truck High Capacity from wholesalers
    • Buy cheap Industrial Hydraulic Power Equipment , Hydraulic Stacker Lift Truck High Capacity from wholesalers

    Industrial Hydraulic Power Equipment , Hydraulic Stacker Lift Truck High Capacity

    Ask Lasest Price
    Brand Name : OEPOCH
    Model Number : OE-CDD-AD15-SMJ
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500 set / 30 days
    Delivery Time : 5-30 days upon order quantity
    • Product Details
    • Company Profile

    Industrial Hydraulic Power Equipment , Hydraulic Stacker Lift Truck High Capacity

    DC24V Industrial electric hydraulic stacker double cylinders Rechargeable pallet truck 1.5T


    Product profile

    The three-stage double-cylinder electro-hydraulic pallet truck is suitable for high-altitude cargo handling and is available in 3.6m-5m depending on customer needs. The equipment is exquisitely designed, in addition to stable work, long working hours have the following advantages.,

    1. Sturdy and strong, not easy to deform, the car body is strong and strong, and the front end of the fork is made of high-strength steel castings, which are resistant to impact and not easily deformed.

    2. The high-performance battery has a long service life, excellent cycle performance and deep discharge recovery capability.

    3. Intelligent charger, light weight and high efficiency, using international advanced high-frequency switching power supply circuit, the in-line CPU precise control precisely controls the entire charging process.

    4. The hydraulic power unit has compact structure, small size, light weight, high efficiency, no leakage, reliable performance, beautiful appearance, stable and reliable lifting, and the lifting speed can be adjusted according to user needs.


    Specifications


    CharacteristicRated capacityQ(kg)1500
    Load centerC(mm)500
    Wheel baseY(mm)1370
    Wheel sizeFront wheelmmφ80*70
    Size of the balance wheelmmφ115*55
    Size of the driving wheelmmφ252*88
    Front wheel basemm420 (520)
    Balance wheel basemm860
    SizeLifting heightH(mm)3600/4000/4500/5000
    Lowest fork heightH3(mm)90
    Outer width of fork540-680
    Single fork widthb(mm)165
    Length of forkL1(mm)900-1070
    Overall lengthL(mm)1750-1920
    Overall widthB(mm)1016
    Overall heightH1(mm)1780/1920/2080/2240
    Min turning radiusWa(mm)1810
    WeightNet weightkg1100
    MotorLifting motor powerkw3.0
    Driving motor powerkw1.2
    Battery /Rated capacityv/AH24V/280AH
    PerformanceLifting speed with/without loadmm/s80/100
    Falling speed with/without loadmm/s150/120
    Travelling speed with/without loadkm/h4.2/S.6
    Max climbing ability with/without load%6/10%
    Control systemAC control

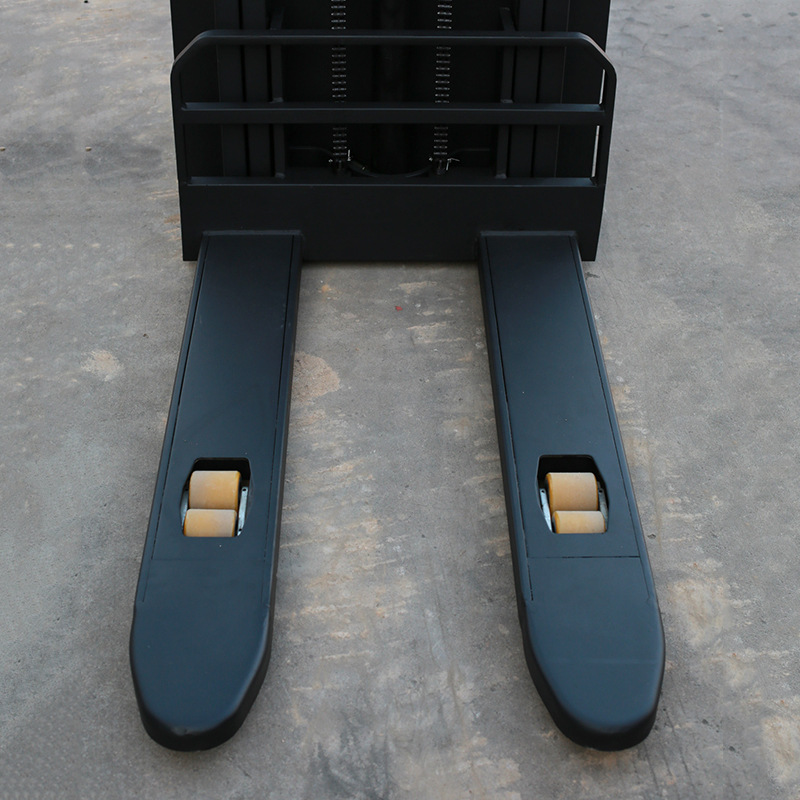

    Product display
