1000 - 2000 Kg Hydraulic Hand Pallet Truck Forklift 900-1070 Mm Fork Standing Operation

Product Categories

oepoch industrial technology

Contact Now

Add to Cart

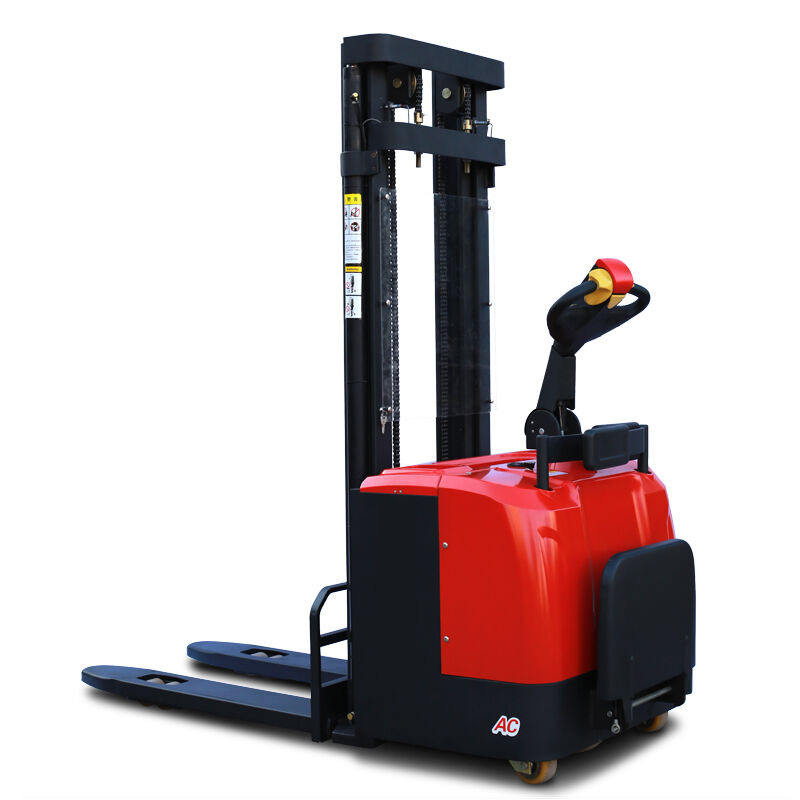

DC24V Industrial electric hydraulic stacker double cylinders Rechargeable Pallet truck 1T 1.5T 2T

Product profile

The double-cylinder electric hydraulic pallet truck has the following advantages,

1.High performance

Efficient maintenance-free AC motor with powerful power.

2. Super smart

The vertical drive system allows the entire drive unit to have a small radius of gyration for easy operation in narrow passages.

3. Faster

Side pull batteries are easy to replace.

Equipped with electronic power steering and easier steering.

Specifications

Model			OE-CDD-AD10-SG	OE-CDD-AD10-SG	OE-CDD-AD20-SG
Characteristic	Rated capacity	Q(kg)	1000	1500	2000
	Load center	C(mm)	500	500	500
	Wheel size	Y(mm)	1300	1300	1300
Wheel size	Front wheel		φ80*75	φ80«75	φ80*75
	Size of the balance wheel		φ115*55	φ115*55	φ115*55
	Size of the driving wheel		φ245*75	φ245*75	φ245*75
	Front wheel base	(mm)	420(520)	420(520)	420(520)
	Balance wheel base	(mm)	640	640	640
Size	Lifting height	H1(mm)	2000/2500/3000/3600	2000/2500/3000/3600	2000
	Lowest fork height	H3(mm)	90	90	90
	Outer width of fork	B2(mm)	580/680	580/680	580/680
	Single fork width	B3(mm)	165	165	165
	Length of fork	L(mm)	900-1070	900-1070	900-1070
	Overall length	L1(mm)	1750-1920	1750-1920	1750-1920
	Overall width	B(mm)	850	850	850
	Overall height	H(mm)	1460/1710/1960/2280	1460/1710/1960/2280	1460
	Min turning radius	(mm)	1688-1768	1688-1768	1688-1768
Weight	Weight	(kg)	720/740/760/790	740/760/780/800	760
Motor	Lifting motor power	_	3.0	3.0	3.0
	Driving motor power	_	1.5	1.5	1.5-2.2
	Battery/rated capacity	(V/AH)	24/240	24/240	24/240
Performance	Lifting speed with/without load	(mm/s)	80/100	80/100	80/100
	Palling speed with/without load	(mm/s)	150/120	150/120	150/120
	Travelling speed with/without load	(km/h)	4.2/5.6	4.2/5.6	4.2/5.6
	Max climbing ability with/without load	(%)	6/10%	6/10%	6/10%
	Control system		AC control	AC control	AC control

Product display
