Safety Hand Hydraulic Power Tools Surface Anti Corrosion Treatment PX Hollow

Product Categories

oepoch industrial technology

Contact Now

Buy cheap Safety Hand Hydraulic Power Tools Surface Anti Corrosion Treatment PX Hollow from wholesalers

Buy cheap Safety Hand Hydraulic Power Tools Surface Anti Corrosion Treatment PX Hollow from wholesalers

Safety Hand Hydraulic Power Tools Surface Anti Corrosion Treatment PX Hollow

Ask Lasest Price
Brand Name :	SOMA
Model Number :	PX-
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	50 set / 30 days
Delivery Time :	5-30 days upon order quantity

Add to Cart

Product Details
Company Profile

Safety Hand Hydraulic Power Tools Surface Anti Corrosion Treatment PX Hollow

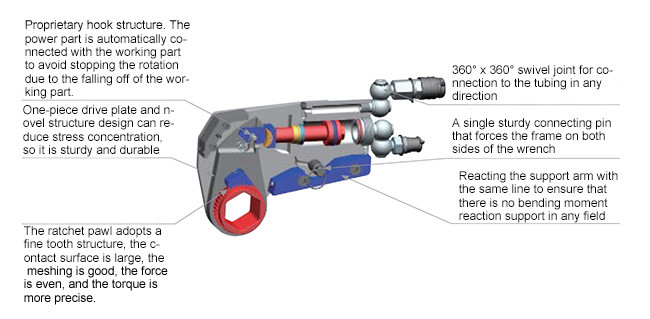

PX hollow hydraulic wrench

Features

Flat body and equal thickness design for smaller form factor
High-strength material body, light weight, large torque-to-weight ratio
Output accuracy ± 3%, accurate and efficient
Compact corner radius for easy operation in tight spaces
Rotate 27° per stroke, fast
Special surface anti-corrosion treatment, suitable for use in harsh environments

Details

Safety Hand Hydraulic Power Tools Surface Anti Corrosion Treatment PX Hollow

Specifications

Type	Inch nut size range(in)	Metric nut size range(mm)	Minimum torque(Nm)	Maximum torque(Nm)	Power part weight(Kg)	Working part weight range(Kg)	Output accuracy	Repeatability accuracy
PX-2	3/4-2 3/8	19-60	266	2668	2.0	1.6-2.2	±3%	100%
PX-4	1-3 1/8	25-80	535	5355	3.5	3.5-4.5	±3%	100%
PX-8	17/8-4	50-105	1194	11943	4.5	6.7-7.8	±3%	100%
PX-16	25/8-4 5/8	65-115	2297	22975	8.3	9.5-12.7	±3%	100%
PX-32	31/8-6 1/8	80-155	4933	49338	12.7	25.3-27.3	±3%	100%

Safety Hand Hydraulic Power Tools Surface Anti Corrosion Treatment PX Hollow

Type	A(mm)	B(mm)	C(mm)	D(mm)
PX-2	144	102	9.6-15.1	31
PX-4	229	139	11.7-13.6	44
PX-8	243	177	14.4-24.1	53
PX-16	328	193	17.3-23.3	64
PX-32	361	257	24.5-30.8	84

PX hydraulic wrench working part specifications

Metric

PX-2		PX-4		PX-8		PX-12		PX-32
Type	Nut to edge size(mm)	Type	Nut to edge size(mm)	Type	Nut to edge size(mm)	Type	Nut to edge size(mm)	Type	Nut to edge size(mm)
PXL2-19	19	PXL4-36	36	PXL8-50	50	PXL16-65	65	PXL32-80	80
PXL2-22	22	PXL4-41	41	PXL8-55	55	PXL16-70	70	PXL32-85	85
PXL2-24	24	PXL4-46	46	PXL8-60	60	PXL16-75	75	PXL32-90	90
PXL2-27	27	PXL4-50	50	PXL8-65	65	PXL16-80	80	PXL32-95	95
PXL2-30	30	PXL4-55	55	PXL8-70	70	PXL16-85	85	PXL32-100	100
PXL2-32	32	PXL4-60	60	PXL8-75	75	PXL16-90	90	PXL32-105	105
PXL2-36	36	PXL4-65	65	PXL8-80	80	PXL16-95	95	PXL32-110	110
PXL2-41	41	PXL4-70	70	PXL8-85	85	PXL6-100	100	PXL32-115	115
PXL2-46	46	PXL4-75	75	PXL8-90	90	PXL16-105	105	PXL32-120	120
PXL2-50	50	PXL4-80	80	PXL8-95	95	PXL16-110	110	PXL32-130	130
PXL2-55	55			PXL8-100	100	PXL16-115	115	PXL32-145	145
PXL2-60	60			PXL8-105	105	PXL16		PXL32-155	155

Inch

PX-2		PX-4		PX-8		PX-12		PX-32
Type	Nut to edge size(mm)	Type	Nut to edge size(mm)	Type	Nut to edge size(mm)	Type	Nut to edge size(mm)	Type	Nut to edge size(mm)
PXL2-3/4	3/4	PXL4-1-7/16	1-7/16	PXL8-1-13/16	1-13/16	PXL16-2-3/8	2-3/8	PXL32-3-1/2	3-1/2
PXL2-7/8	7/8	XL4-1-5/8	1-5/8	PXL8-2	2	PXL16-2-9/16	2-9/16	PXL32-3-11/16	3-11/16
PXL2-1-1/16	1-1/16	PXL4-1-13/16	1-13/16	PXL8-2-3/16	2-3/16	PXL16-2-3/4	2-3/4	PXL32-3-7/8	3-7/8
PXL2-1-3/16	1-3/16	PXL4-2	2	PXL8-2-3/8	2-3/8	PXL16-2-5/16	2-5/16	PXL32-4-1/8	4-1/8
PXL2-1-1/4	1-1/4	PXL4-2-3/16	2-3/16	PXL8-2-9/16	2-9/16	PXL16-3-1/8	3-1/8	PXL32-4-1/4	4-1/4
PXL2-1-7/16	1-7/16	PXL4-2-3/8	2-3/8	PXL8-2-3/4	2-3/4	PXL16-3-1/2	3-1/2	PXL32-4-5/8	4-5/8
PXL2-1-5/8	1-5/8	PXL4-2-9/16	2-9/16	PXL8-2-5/16	2-5/16	PXL16-3-11/16	3-11/16	PXL32-5	5
PXL2-1-13/16	1-13/16	PXL4-2-3/4	2-3/4	PXL8-3-1/8	3-1/8	PXL16-3-7/8	3-7/8	PXL32-5-3/8	5-3/8
PXL2-2	2	PXL4-2-5/16	2-5/16	PXL8-3-1/2	3-1/2	PXL16-4-1/8	4-1/8	PXL32-5-3/4	5-3/4
PXL2-2-3/16	2-3/16	PXL4-3-1/8	3-1/8	PXL8-3-11/16	3-11/16	PXL16-4-1/4	4-1/4
PXL2-2-3/8	2-3/8					PXL16-4-5/8	4-5/8

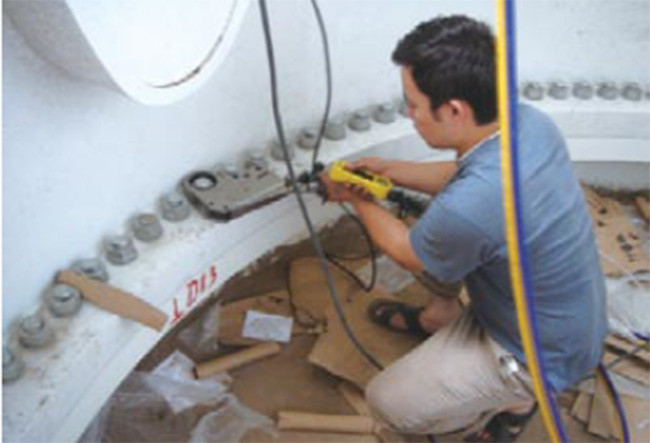

Product dispaly

Safety Hand Hydraulic Power Tools Surface Anti Corrosion Treatment PX Hollow

Safety Hand Hydraulic Power Tools Surface Anti Corrosion Treatment PX Hollow
