V90N SERIES
Swash-plate Type Axial Piston Double Pump
Features
- Variable axial piston double pump design for the open circuit.
- Various controllers available: hydraulic and electrical control
design available, which can combined the different controllers of
flow control, pressure control and power control.
- High working pressure ( 380 bar ) and long lifetime
- High efficiency, excellent self-priming performance
- 1 inlet and 2 outlets
- Special pump housing structure design meets the low noise
requirements.
- More suitable for mobile machinery like excavators, cranes,
drilling rigs and so on.
Technical data
| Size | V90N130 | V90N165 |
| Displacement(cc/rev) | 130×2 | 165×2 |
| Speed | Rated speed (rpm)*1 | 2200 | 2100 |
| Maximum speed (rpm)*2 | 2500 | 2400 |
| Minimum speed (rpm) | 600 | 600 |
| Pressure | Rated pressure (bar) | 380 | 380 |
| Maximum pressure (bar) | 420 | 420 |
| Maximum torque (N.m) @Vgmax and Δp=380bar | 2×786 | 2×998 |
| Case volume (L) | 2.8 | 3.4 |
| Suction port pressure (abs bar) | 0.7～2 |
| Drain pressure (bar) | 1 |
| Max. drain pressure (bar) | 3 |
| Mass (Kg) | 166 |
| Temperature range (℃) | -20～95 |
| Hydraulic fluid viscosity range (mm2/s) | 10～1000*3 (optimum viscosity range 16～36) |
1 Steady state suction pressure should be 0MPa and above (at normal
condition);
2 If suction pressure less than 0 bar, Boost pressure should be
required;
3 In case of 200-1000mm2/s, please allow system to warm up before
using machine.
Type introduction
| V90N | 130 | A | V | R | ED2 | M | C | / | F3 | J1 | NN | K0 | G | M | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
Product series
| 1 | Double pump, variable swashplate design,open circuit | V90N |
Displacement
| 2 | Displacement cc/rev | 130 | 165 |
Product series
Seals
Direction rotation
| 5 | Clockwise | ● | R |
| Counter-clockwise | o | L |
Control type
| 6 | Electric proportional displacement | Electro-proportional displacement control, positive displacement control, 12V | o | ED1 |
| Electro-proportional displacement control, positive displacement
control, 24V | ● | ED2 |
Negative displacement control | Hydraulic pilot negative flow + Electro-proportional power control
+ (total power control) | o | HP1 |
Connector for solenoids
| 7 | Without(For hydraulic control) | o | N |
| Deutsch, DT04-2P | ● | M |
Swashplate angel indicator
| 8 | Without indicator | ● | N |
| With swashplate indicator, 5VDC | o | C |
Mounting flange
| 9 | | 130 | 165 | Code |
| SAE J617 N0.3 flywheel flange | ● | | F3A |
| SAE J617 N0.3 flywheel flange | ● | | F3B |
| SAE J617 N0.2 flywheel flange | | ● | F4 |
Input shaft
| 10 | Input shaft size | 130 | 165 | Code |
| SAE J744-44-4 13T 8/16 | ● | ● | S5 |
| JISD2001 40X14X2.5 | ● | ● | J1 |
| JISD2001 47.5X17X2.5 | ● | ● | J2 |
Through drive
| 11 | None | ● | NN |
| SAE A 82-2 SAE J744-16-4 9T 16/32DP | o | A1 |
| SAE A 82-2 SAE J744-19-4 11T 16/32DP | o | A2 |
| SAE B 101-2 SAE J744-22-4 13T 16/32DP | o | B1 |
| SAE B 101-2 SAE J744-25-4 15T 16/32DP | o | B2 |
Pilot control source
| 12 | External pilot supply, without pilot gear pump | o | NN |
| With pilot gear pump and pressure relief valve (only for none
through drive) | o | K0 |
Connection type (except inlet and outlet port)
| 13 | UNC port, IS011926 | o | A |
| Metric port, ISO 6149 | o | M |
| BSPPG thread, JISB2351 | ● | G |
Thread type of Flange Port
| 14 | UNC threads(only for UNC port) | o | A |
| Metric thread | ● | M |
Standard version/Special version
Note: Marked with " o " means under development.
ED1/ED2 Electro-proportional displacement control principle
Electro-proportional displacement control: With
pilot-pressure-related control, the pump displacement is adjusted
in proportion to the pilot pressure. Basic position without pilot
signal is Vg min, which includes the mechanically depressurized
basic position Vg min.
With increasing pilot pressure the pump swivels to a larger
displacement.
The necessary control power is taken from the operating pressure or
the external control pressure applied to port P. If the pump is to
be adjusted from the zero basic setting or from a low operating
pressure, port P must be supplied with an external control pressure
of at least 30 bar, maximum 50 bar.
Note:
When ordering, please provide the information as below:
·Working pressure ·Maximum flow ·Minimum flow

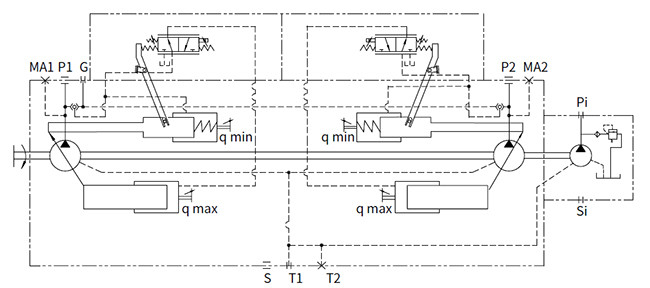

Negative flow control schematic

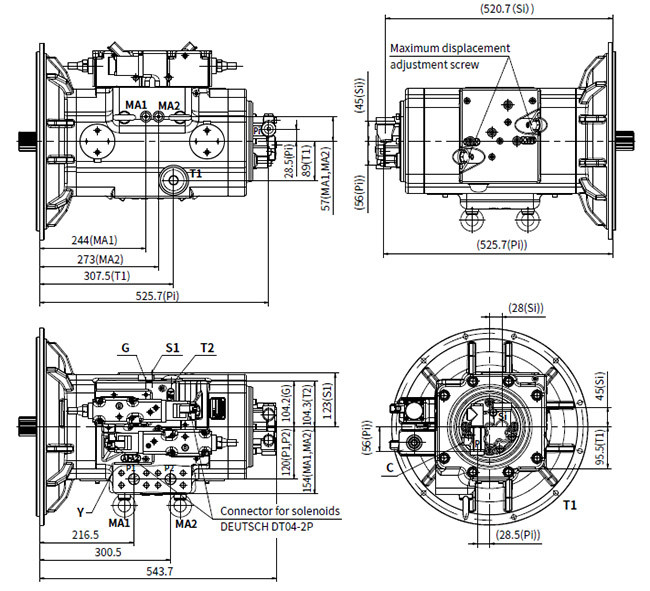

Installation size
·V90N 130 type
·V90N 165 type
Port Details
| Port Name | Port Size and Description |
| P1,P2 | Output Port | 1" SAE J518C Code 62 (6000psi) |
| 4XM12 depth 17mm |
| S1 | Input Port | 3-1/2" SAE J518C Code 61 (500psi) |
| 4XM16 depth 27mm |
| T1,T2 | Drain Port | G1 1/4 |
| G | External Control Pressure Port | G 1/4 |
| MA1, MA2 | Pressure Measureing | G 1/4 |
| Pi | Output Port | G 1/2 |
| Si | Input Port | G 3/4 |

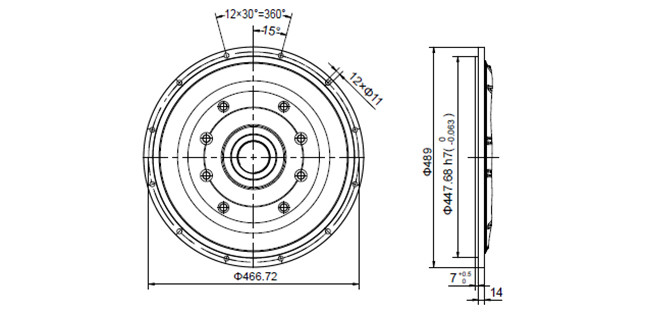

·'F3' Type flywheel flange
F3A Type F3B Type
·'F4' Type flywheel flange
·Input shaft
| Size | | D1 | L | L1 | L2 |
| F3A | F3B | F4 |
| 130 | S5 | 44.45 | 58 | 75.7 | 48 | 33 | - |
| J1 | 39.5 |
| J2 | 47 |
| 165 | S5 | 44.45 | 64 | 82.8 | - | - | 60 |
| J1 | 39.5 |
| J2 | 47 |
