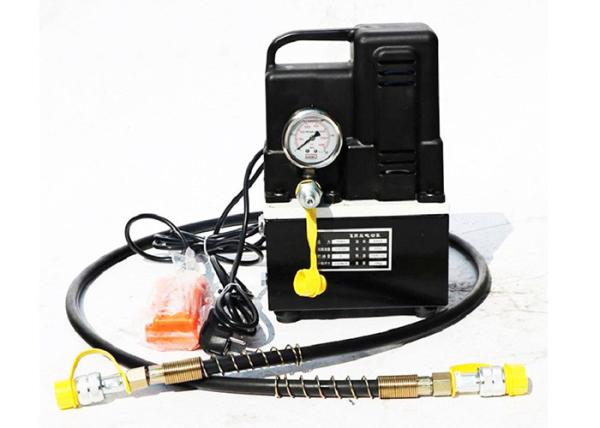

18V portable electric hydraulic unit ultra high pressure hydraulic pump station

The compact, lightweight design of this product is lightweight and small.

The handle is generous in design and easy to carry.

Two-stage hydraulic design for high efficiency.

It is equipped with a straight-through solenoid valve to control oil return, and a remote control with extra

long cable.

High-strength housing protects and protects electrical components from moisture and dirt.

Built-in safety valve for overload protection.

Configure the pressure gauge and visual hydraulic pressure.

Configure 1.5m high pressure tubing and R2 3/8 quick connector and dust cap.

Maximum working pressure: 700bar.

Equipment parameter table

Pressure	70Mpa	Charging duration	2 hours
Voltage	220V	Motor power	400W
Hi pressure Flow	0.5L/min	Low pressure Flow	3.5L/min
Pump	Piston pump	Oil storage	2.5L
Weight	11.5KG	Dimensions	230380180mm
Oil type	32# anti-wear hydraulic oil or 7-15 hydraulic transmission oil
Features	Pressure overload protection device to avoid overpressure damage of equipment;
	The charging model is more suitable for field use, more pressure than traditional manual, more oil storage, no need for manual electric drive
	High and low pressure two-stage output, low pressure reaches 7MPa pressure is automatically jump to high pressure, automatic conversion, no need to manually switch
	Two 4AH large capacity batteries are durable and suitable for more different hydraulic tools.
Instructions	1.Remove the battery and charge it. When charging, be sure to use it after it is full, so as not to reduce the battery life.
	2.Install the charged battery. Open the dust cover of the quick interface;
	3.Connect the high pressure fuel line to the quick coupling and connect the hydraulic equipment that needs to work
	4.Turn on the switch, the device runs and check if the operation is normal.

Failure and solution

Failure	Reason	Solution
Motor abnormality	1.Power failure	Check power or battery
Motor abnormality	2.Poor contact	Check switch
Low or no pressure	1.Overflow valve failure	Adjust or replace the relief valve (70Mpa)
	2. Oil leakage	Check replacement seal
	3. Plunger wear	Replace the plunger pair
	4. Low oil level	Filling hydraulic oil
Flow insufficient	Seal wear	Change seal
	The type of hydraulic oil is wrong	Change right hydraulic oil
	Low oil level	Filling hydraulic oil

Product display
