Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

Mobile valves performance test bench

Mobile valves performance test bench can be used to test mobile sectional valve applied on engineering machinery(20 ton), we do test unload valve, pressure relief valve, spool movement, pressure drop, internal leakage and switch durability test.

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

a. Mobile valves performance test bench panorama

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

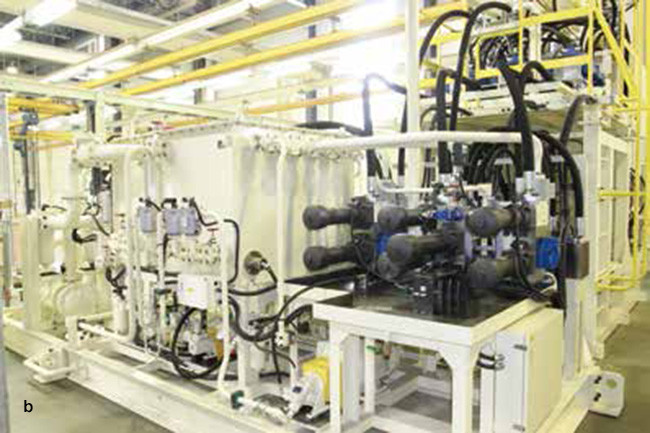

b. Oil source

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

c. Operation cabinet

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

d. Test bench

Detection and control

Item	object	Range	Precision
Test	Flow	P TS A B port	0~525L/min	±0.5%
		T port	0~1000L/min	±0.5%
		S port	0~18L/min	±0.5%
	Pressure	PPC T TS port	0~5MPa	±0.01MPa(system)
	Pressure	P LS A B port	0~50MPa	±0.01MPa(system)
	Stroke	Spool stroke	0~30mm	±0.01MPa
	Leakage	Internal leakage	0.00~50cc/min (culumative measurement)	±0.005cc
	Leakage	Internal leakage	50~2000cc/min (instantaneous measurement)	±0.005cc
Control	Flow	P port (large flow)	10~720L/min	±0.5L/min
	Flow	P port (low flow)	0~100L/min	±0.1L/min
	Pressure	P A B port	2~42MPa	±0.01MPa
	Pressure	PPC	0~5MPa	±0.01Mpa

Specification

circuitv	Maximum flow (L/min)	Maximum pressure(MPa)
P1	360	42
P2	360	42
External pilot	33	7
Leakage circuit	24	35
Control circuit	20	7
Loop circuit	375	1
Load circuit	500	35

Test interface

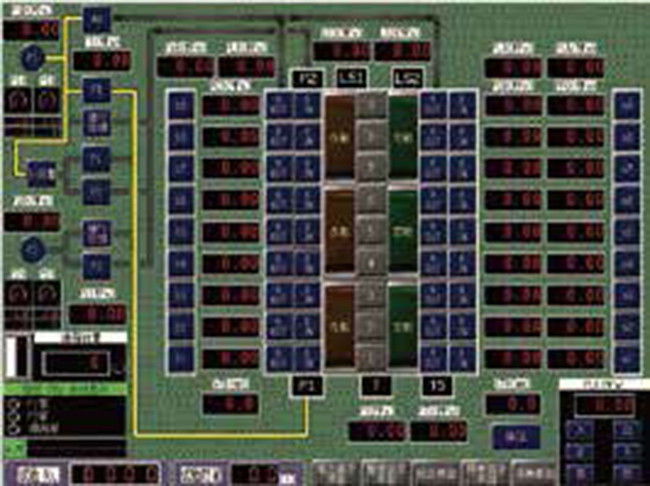

PLC meter in Circuit generation interface

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

PLC meter out Circuit generation interface

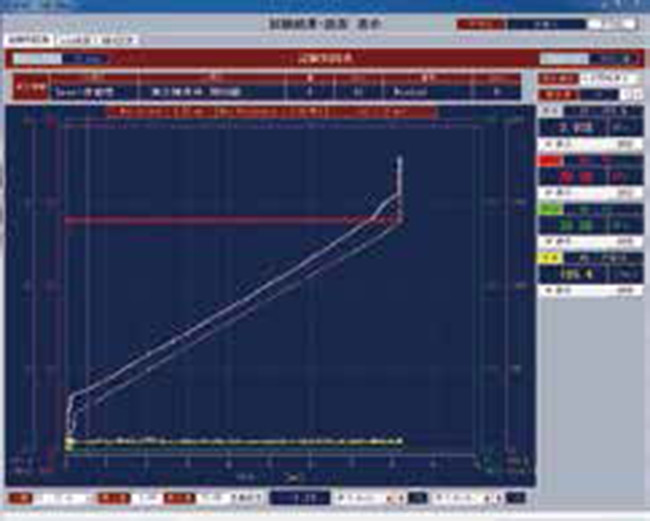

Test curve

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

Safety valve

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

P load stroke characteristics

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

Cylinder load stroke characteristics

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

Compound action
