Portable air conditioner with R410A floor standing Mobile AC
cooling air unit
Product profile:
The product is fully automatic control system, imported full closed
rotary compressor, high efficiency heat exchanger and other
advanced parts carefully designed and made. It is characterized by
local cooling, which can solve the problem that it is difficult for
the whole cooling in the wide space. It can also be used in small
space for the body cooling. It is easy to use, that is, to buy and
use, and without installation, it is safe and reliable. The product
has automatic diagnostic function. If it is not operating normally,
the problem will be displayed on the display. The product is steel
product, with the pulley, so its strength and durability.
Application and Features
1. Widely used in Hospital, Institute, disaster scene Ambulance.
Automobile maintenance center, manufacturing engineering cooling.
Temporary office space such as reception room, equipment
centralized cooling. Factory workshop, canteen, warehouse, field
office. Outdoor activities such as golf driving range, all kinds of
celebrations, temporary greenhouse.
2. Full steel shell with pulley, strong and durable, light and
flexible.
3. Large air volume, strong refrigeration, low energy consumption,
low noise, long life, smooth operation.
4. Using advanced R 410A refrigerant, green, healthy and
comfortable.
5. Using a new high-efficiency compressor, can be effectively
cooled at 45 ℃ high temperature environment.
6. Use automatic control system, with automatic diagnosis function,
effectively prevent bad operation and other situations of damage to
the machine.
| Model | OE-AC-P14 | OE-AC-P14D | OE-AC-P22 | OE-AC-P26 | OE-AC-P34 | OE-AC-P60 | OE-AC-P100 |
| Power supply | Customized(voltage and frequency) |
Capacity (KW) | 3.5 | 3.5 | 5.5 | 6.5 | 8.5 | 15 | 25 |
| Capacity (BTU) | 11900 | 11900 | 18700 | 22000 | 28900 | 51100 | 85300 |
| Air volume ( m³/h ) | 470 | 480 | 780 | 910 | 1550 | 2700 | 3500 |
Power (KW) | 1.4 | 1.4 | 1.8 | 2.4 | 3.25 | 5.65 | 11.3 |
Current (A) | 7.4 | 7.4 | 10.4 | 10.8 | 7 | 13.2 | 20 |
| Water tank | 14L | 14L | 14L | 14L | - | - | - |
| Dimension | W450 D510 H1100 | W450 D510 H1100 | W520 D625 H1100 | W560 D630 H1260 | W810 D1050 H1000 | W1360 D810 H1000 | W1405 D900 H1530 |
| Package | W520 D575 H1210 | W520 D575 H1210 | W610 D700 H1210 | W645 D715 H1575 | W880 D1120 H1155 | W1430 D885 H1150 | W1480 D980 H1580 |
| G．W (Kg) | 65 | 65 | 84 | 128 | 160 | 220 | 420 |
N．W (Kg) | 60 | 60 | 78 | 100 | 120 | 185 | 350 |
| Operating condition | 18-45℃ |
| Container capacity | 40/20’ 144/40’ | 30/20 57/40 | 27/20’ 54/40’ | 7/20’ 14/40’ | 5/20’ 11/40’ |
Note: all products can be customized for voltage and frequency

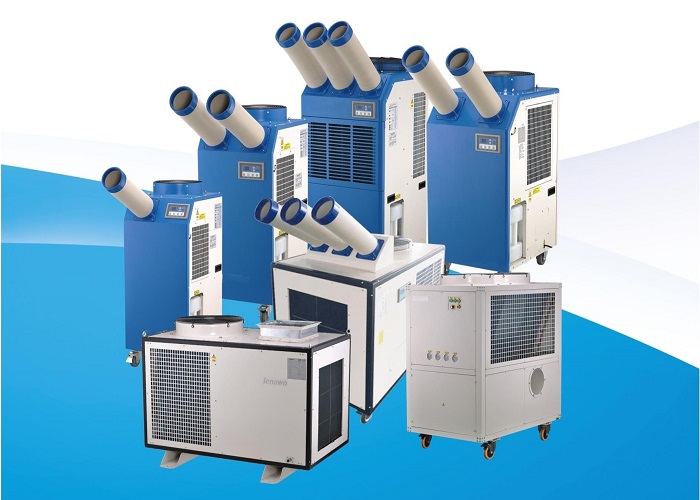

Product display
