ISG vertical pipeline single stage centrifugal pump cast iron
stainless steel clean water booster pump
Product profile
ISG vertical pipeline pump is an excellent hydraulic model selected
by OEPOCH. It adopts the performance parameters of IS type
centrifugal pump and is designed and improved on the basis of
general vertical pump. In addition, according to the different use
temperature and medium, it is derived from hot water, high
temperature, corrosion resistant chemical pump, oil pump and other
models, with high efficiency, energy saving, quiet, stable and
reliable.
Application
This product is suitable for garden spray irrigation, high-rise
building pressurized water supply, urban water supply and drainage,
industrial circulation transportation, medium remote
transportation, fire booster, HVAC refrigeration and heating cycle,
bathroom hot water circulation booster..
Working conditions
1, suction pressure ≤ 1Mpa or pump maximum working pressure is less
than 1.6Mpa (pump suction plus lift ≤ 1.6Mpa) pump static test
pressure is 2.5Mpa, if you need higher working pressure, you need
additional customization.
2, the ambient temperature ≤ 40 ° C, the relative humidity is less
than 95%.
3. The volume of solid particles in the transport medium does not
exceed 0.1% of the unit volume, and the particle size is <0.2
mm. If the media contains fine particles, you need to replace other
wear-resistant models.
Features and advantages
1, the pump is a vertical structure, compact and beautiful
appearance, the inlet and outlet diameters are consistent and on
the same center line, easy to install and maintain.
2. The impeller is directly mounted on the extension shaft of the
motor. The axial distance is short and the structure is compact.
The radial and axial loads of the pump are effectively balanced,
and the operation is stable and the noise is small.
3, mechanical seal using imported titanium alloy seal ring, high
temperature resistant wear-resistant hard alloy material,
effectively extending the service life
4, installation and maintenance is convenient, no need to dismantle
the pipeline, only need to remove the pump base nut to extract all
the rotor components.
5, vertical or horizontal cantilever installation can be.
6, the pump can be used in series and parallel according to the
flow and head requirements.

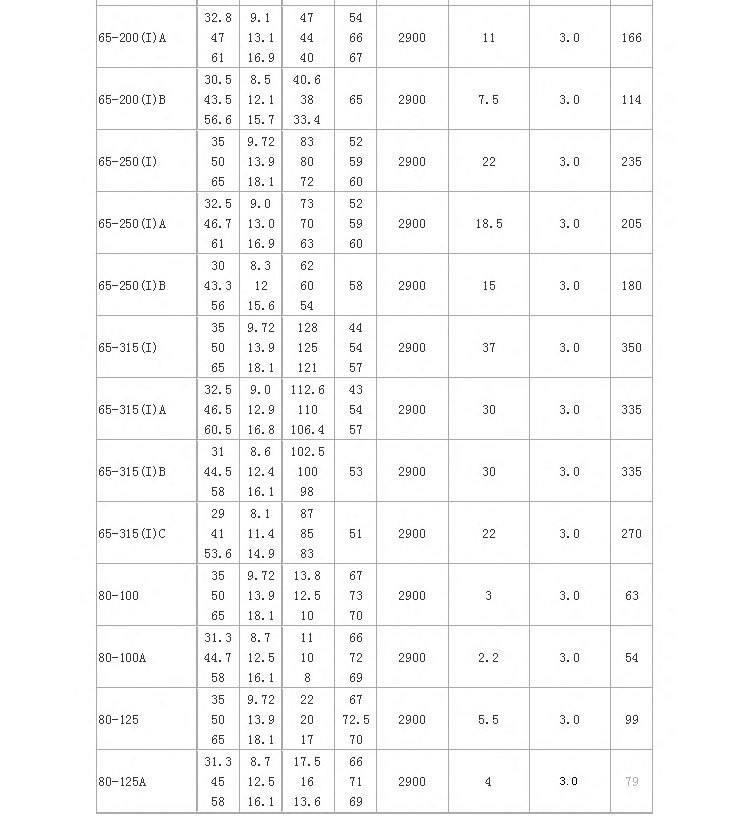

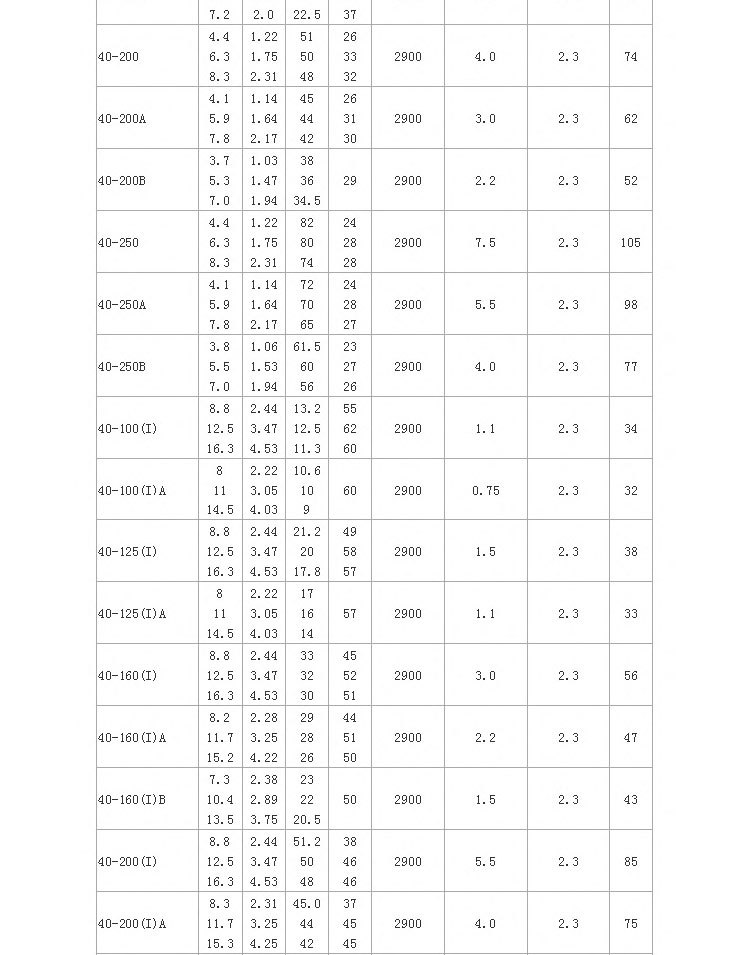

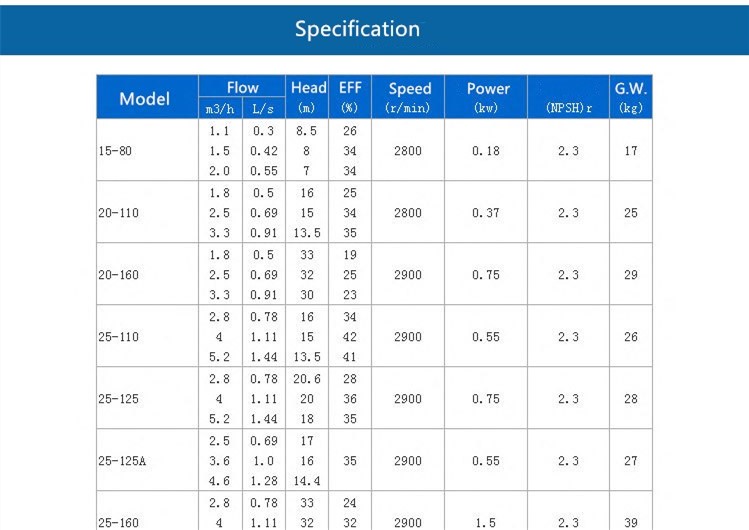

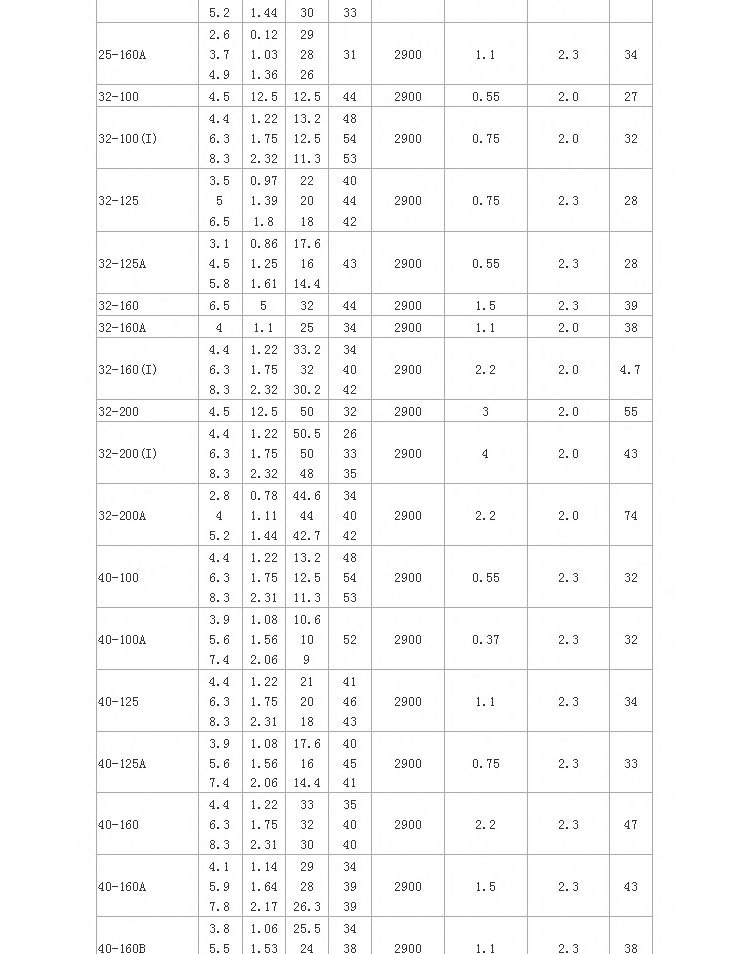

Specifications

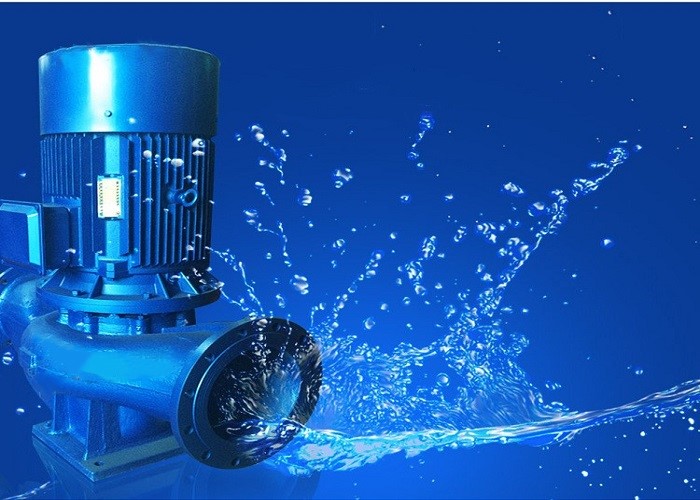

Product display
