Split Hydraulic Ball Valves , 3" 4" High Pressure Flanged Ball Valves 3000 / 6000psi DN13-50

Industrial hydraulic SS/C.S split flange high pressure ball valve DN13-50 3000/6000psi

This SAE flanged ball valve is connected in a split flange connection and needs to be paired with welded flange joints, seals, flanged plates and bolts. The material is divided into carbon steel and stainless steel, and the pressure grade is divided into medium pressure and high pressure. The diameter is DN13-50. The factory comes standard with a handle.

If you need a welded pairing flange (pictured above), add “W-” in front of the model number and indicate the outer diameter and wall thickness of the welded joint (da*S) at the end.

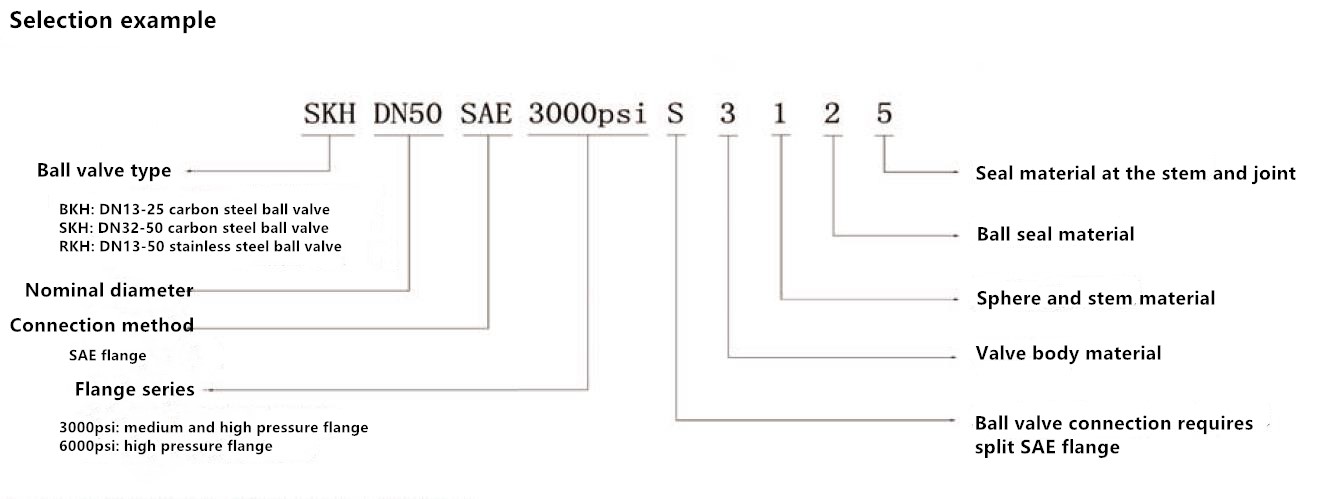

Selection example: W-SKH DN50 SAE 3000psi S 3125 - 60*8

*Standard configuration of butt flange material: The flange pressure plate material is 45# carbon steel; when the ball valve body is carbon steel, the welding connection material is 20# carbon steel, ball valve body

When it is stainless steel, the welded joint material is stainless steel 316Ti. If you have special requirements, please indicate after the model number.

Body size for 3000psi and 6000psi

DN	Flang size	Actual size	L1	B	H	H1	H2	H4	M	SW
DN	Flang size	LW	mm	mm	mm	mm	mm	mm	mm	mm
13	1/2”	13	48	35	51	40	8	17.5	M5	9
20	3/4”	20	62	49	73	57	12	24.5	M6	14
25	1”	24	66	60	76	60	12	26.5	M6	14
32	11/4”	32	80	80	105	85.4	13.5	39.5	M8	17
40	11/2”	38	85	84	111.4	92.4	13.5	42	M8	17
50	2”	48	100	100	130	111	13.5	50	M8	19

SAE3000psi split flange ball valve connection size and working pressure (medium and high pressure)

DN	Pressure	C	d	G	A	L2	L3	O-ring size	L	L4	E	F
DN	bar	mm	mm	mm	mm	mm	mm	O-ring size	mm	mm	mm	mm
13	315	30.2	24	14	25.4	6.7	35	18.7×3.53	151	211	54	45.6
20	315	38.1	32	21	31.8	6.7	35	25.0×3.53	162	232	65	51.8
25	315	44.4	38	27	39.6	8	35	32.9×3.53	178	258	70	58.4
32	250	50.8	43	33	44.5	8	35	37.7×3.53	190.5	280.5	79	72.6
40	200	60.3	50	40	53.7	8	40	47.2×3.53	231	331	94	82.2
50	200	71.4	62	52	63.3	9.5	45	56.7×3.53	232	346	102	96.4

SAE6000psi split flange ball valve connection size and working pressure (high pressure)

DN	Pressure	C	d	G	A	L2	L3	O-ring size	L	L4	E	F
DN	bar	mm	mm	mm	mm	mm	mm	O-ring size	mm	mm	mm	mm
13	400	31.7	24	14	25.4	7.7	35	18.7×3.53	151	219	56	47.2
20	400	41.3	32	21	31.8	8.8	40	25.0×3.53	174	250	71	60
25	400	47.6	38	27	39.6	9.5	40	32.9×3.53	198	278	81	69.9
32	400	54	44	33	44.5	10.3	45	37.7×3.53	223	313	95	77.2
40	400	63.5	51	40	53.7	12.6	70	47.2×3.53	281	381	113	95
50	400	79.4	67	52	63.3	12.6	80	56.7×3.53	316	432	133	113.8

Ball valve model

DN	Hydraulic system commonly used Carbon steel ball valve model (sealed POM, FPM)		Common chemical media commonly used stainless steel ball valve models (sealed PEEK, FPM)
DN	SAE3000psi	SAE6000psi	SAE3000psi	SAE6000psi
13	BKH DN13 SAE3000psi S1125	BKH DN13 SAE6000psi S1125	RKH DN13 SAE3000psi S4465	RKH DN13 SAE6000psi S4465
20	BKH DN20 SAE3000psi S1125	BKH DN20 SAE6000psi S1125	RKH DN20 SAE3000psi S4465	RKH DN20 SAE6000psi S4465
25	BKH DN25 SAE3000psi S1125	BKH DN25 SAE6000psi S1125	RKH DN25 SAE3000psi S4465	RKH DN25 SAE6000psi S4465
32	SKH DN32 SAE3000psi S3125	SKH DN32 SAE6000psi S3125	RKH DN32 SAE3000psi S4465	RKH DN32 SAE6000psi S4465
40	SKH DN40 SAE3000psi S3125	SKH DN40 SAE6000psi S3125	RKH DN40 SAE3000psi S4465	RKH DN40 SAE6000psi S4465
50	SKH DN50 SAE3000psi S3125	SKH DN50 SAE6000psi S3125	RKH DN50 SAE3000psi S4465	RKH DN50 SAE6000psi S4465

Carbon steel ball valve type with welded butt flange (sealed POM, FPM)

DN	Carbon steel ball valve type with welded butt flange (sealed POM, FPM)
DN	3000psi -Ball valve model	Da×S (outer diameter × wall thickness)	6000psi-Ball valve model	Da×S (outer diameter × wall thickness)
13	W-BKH DN13 SAE3000psi S1125	-20×2.5/21.3×3/22×2.5	W-BKH DN13 SAE6000psi S1125	-16×2.5/20×3/21.3×4.5
20	W-BKH DN20 SAE3000psi S1125	-22×2.5/25×3/28×3	W-BKH DN20 SAE6000psi S1125	-22×3/25×4/30×5
25	W-BKH DN25 SAE3000psi S1125	-30×4/33.7×3.6/35×4	W-BKH DN25 SAE6000psi S1125	-30×5/33.7×6.3/38×6
32	W-SKH DN32 SAE3000psi S3125	-38×5/40×5/42×5	W-SKH DN32 SAE6000psi S3125	-38×6/42.4×6.4
40	W-SKH DN40 SAE3000psi S3125	-42×5/45×5/48×6	W-SKH DN40 SAE6000psi S3125	-45×7/48×7/50×9
50	W-SKH DN50 SAE3000psi S3125	-50×6/57×7/60×8	W-SKH DN50 SAE6000psi S3125	-57×10/60×10/65×10
