Industrial MD series PN16 German standard low pressure flange type three-way ball valve

Technical Parameters,

Structural form: full bore, L-shaped channel or T-shaped channel

Interface form: German standard DIN2633/PN16 flange

Working pressure: 16Bar

Body material: 304 stainless steel

Sphere and stem material: 316 stainless steel

Ball seat seal: PTFE PTFE

Stem seal: PTFE PTFE

Working temperature: -30 ° C ~ +180 ° C

Mode of operation: It can be operated manually or by mounting the actuator. Please consult the mounting hole size of the actuator.

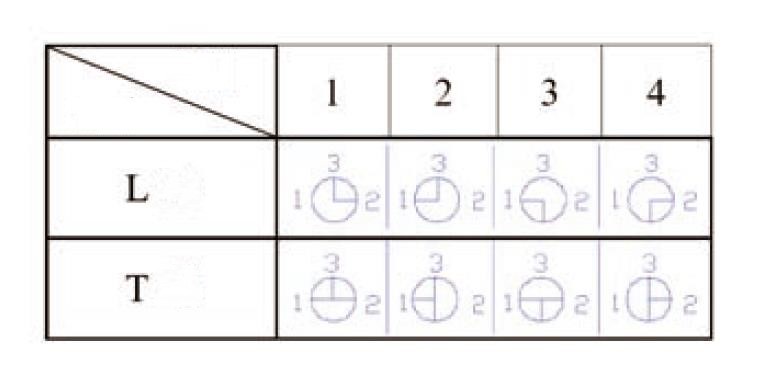

The handle is operated at 90° and the channel is switched between any two adjacent positions between position 1 and position 4, see figure below.

valve model
