Metal Hydraulic Ball Valves G Thread With Actuator Bracket Medium Pressure

The structure of the HK medium and low pressure stainless steel two-way ball valve is a full-bore, two-piece structure.

The interface form is

1) Inch straight pipe internal thread (G thread or PF tooth);

2) Ball valves with NPT American taper internal thread are also available.

Ordering example KH-3/4′′ NPT

Working pressure 68bar (1/8"~2");

50bar (21/2"~3")

Operating temperature -46°C ~ +180°C.

Internal G thread ball valve (PF tooth) size table

Ordinary ball valve model	Ball valve model with actuator bracket	Interface thread (PF tooth)	D	L	C	H	Code	SW	k1 / K2	d1 / d2	h	Starting torque (at 25 bar)
KH-G1/8	-	G1/8″	8.7	55.5	50	97.5	-	-	-	-	-	-
KH-G1/4″	-	G1/4″	11.2	56	58	100.0	-	-	-	-	-	-
KH-G3/8″	-	G3/8″	12.6	56	58	100.0	-	-	-	-	-	-
KH-G1/2″	KH-G1/2″-D	G1/2″	16	60	58	100.0	F03/F04	9	36/42	5.5/5.5	42	5 Nm
KH-G3/4″	KH-G3/4″-D	G3/4″	20	72	64	129.0	F03/F04	9	36/42	5.5/5.5	49	7 Nm
KH-G1″	KH-G1″-D	G1″	25	85	77	156.0	F04/F05	11	42/50	5.5/7	58	13 Nm
KH-G11/4″	KH-G11/4″-D	G11/4″	32	94	83	156.0	F04/F05	11	42/50	5.5/7	62	18 Nm
KH-G11/2″	KH-G11/2″-D	G11/2″	38	105	96	182.5	F05/F07	14	50/70	7/9	71	22 Nm
KH-G2″	KH-G2″-D	G2″	50.8	125	102	182.5	F05/F07	14	50/70	7/9	78	35 Nm
KH-G21/2″	KH-G21/2″-D	G21/2″	65	155	129	252.0	F07/F10	17	70/102	9/11	102	61 Nm
KH-G3″	KH-G3″-D	G3″	80	173	136	252.0	F07/F10	17	70/102	9/11	111	86 Nm

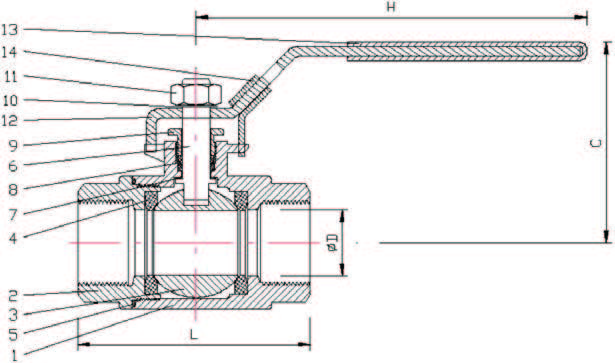

NO.	Name	Material	Quantity
1	Valve Body	A351-CF8M Stainless Steel	1
2	Joint	A351-CF8M Stainless Steel	1
3	Sphere	A351-CF8M Stainless Steel	1
4	Ball Seat Seal	RPTFE ( enhanced PTFE)	2
5	Valve Body Seal	RPTFE ( enhanced PTFE)	1
6	Valve ROD	316 Stainless Steel	1
7	Gasket	RPTFE ( enhanced PTFE)	1
8	Valve Rod Seal	RPTFE ( enhanced PTFE)	2
9	Sealed Tightening Nut	304 Stainless Steel	1
10	Valve ROD Washer	304 Stainless Steel	1
11	Valve Rod Nut	304 Stainless Steel	1
12	Handle	304 Stainless Steel	1
13	Handle Sleeve	Plastic	1
14	Locking device	304 Stainless Steel	1

Three-way ball valve interface, BSPP inch straight pipe internal thread (G thread or PF tooth); pressure: 68bar; temperature: -46°C ~ +180°C

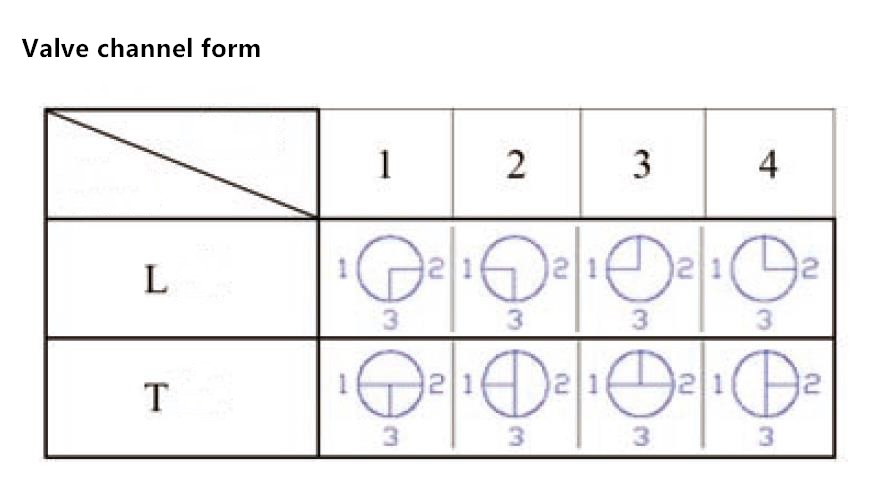

The three-way ball valve comes standard with a 90° handle; the channel switches between any two positions in positions 1 to 4. Please contact us for special requirements.

NO.	Name	Materials	Number
1	Valve Body	A351-CF8M Stainless Steel	1
2	Joint	A351-CF8M Stainless Steel	3
3	Sphere	A351-CF8M Stainless Steel	1
4	Ball Seat Seal	Enhancements PTFE	4
5	Valve Body Seal	PTFE	3
6	Valve ROD	316 Stainless Steel	1
7	Gasket	PTFE	1
8	Valve Rod Seal	PTFE	2
9	Sealed Tightening Nut	304 Stainless Steel	1
10	HANDLE Washer	304 Stainless Steel	1
11	Handle Pins	304 Stainless Steel	1
12	Handle	304 Stainless Steel	1
13	Handle Sleeve	Plastic	1
14	Stop Pin	304 Stainless Steel	1

Three-way internal G thread ball valve (PF tooth) size table

Channel	Valve model	Connection size	D	L	A	H	C
L-type	KH-G1/4″-3W-L	G1/4″	11.2	79.0	39.5	160.0	70.0
	KH-G3/8″-3W-L	G3/8″	11.2	79.0	39.5	160.0	70.0
	KH-G1/2″-3W-L	G1/2″	12.7	79.0	39.5	160.0	70.0
	KH-G3/4″-3W-L	G3/4″	16.0	88.0	44.0	160.0	77.0
	KH-G1″-3W-L	G1″	20.0	108.0	54.0	175.0	87.0
	KH-G11/4″-3W-L	G11/4″	25.0	124.0	62.0	175.0	93.0
	KH-G11/2″-3W-L	G11/2″	32.0	135.0	67.5	245.0	103.0
	KH-G2″-3W-L	G2″	38.1	164.0	82.0	245.0	113.0
T-type	KH-G1/4″-3W-T	G1/4″	11.5	79.0	39.5	160.0	70.0
	KH-G3/8″-3W-T	G3/8″	12.5	79.0	39.5	160.0	70.0
	KH-G1/2″-3W-T	G1/2″	12.5	79.0	39.5	160.0	70.0
	KH-G3/4″-3W-T	G3/4″	15.0	88.0	44.0	160.0	77.0
	KH-G1″-3W-T	G1″	20.0	108.0	54.0	175.0	87.0
	KH-G11/4″-3W-T	G11/4″	25.0	124.0	62.0	175.0	93.0
	KH-G11/2″-3W-T	G11/2″	32.0	135.0	67.5	245.0	103.0
	KH-G2″-3W-T	G2″	40.0	164.0	82.0	245.0	113.0
