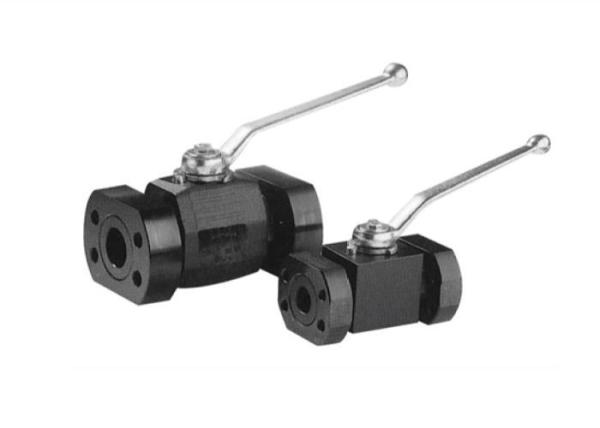

Carbon Steel Hydraulic Ball Valves High Pressure , 6000 / 5000 Psi Ball Valve SAE Flanged

Industrial hydraulic SAE flanged carbon steel high pressure ball valve DN13-50 3000/6000psi

SAE flanged carbon steel ball valves are available in sizes from DN13 to DN50.

These ball valves are only available with carbon steel ball valves and standard features include handles. The connection is in the form of a full-piece SAE flange that needs to be used with mating flanges, seals, and bolts.

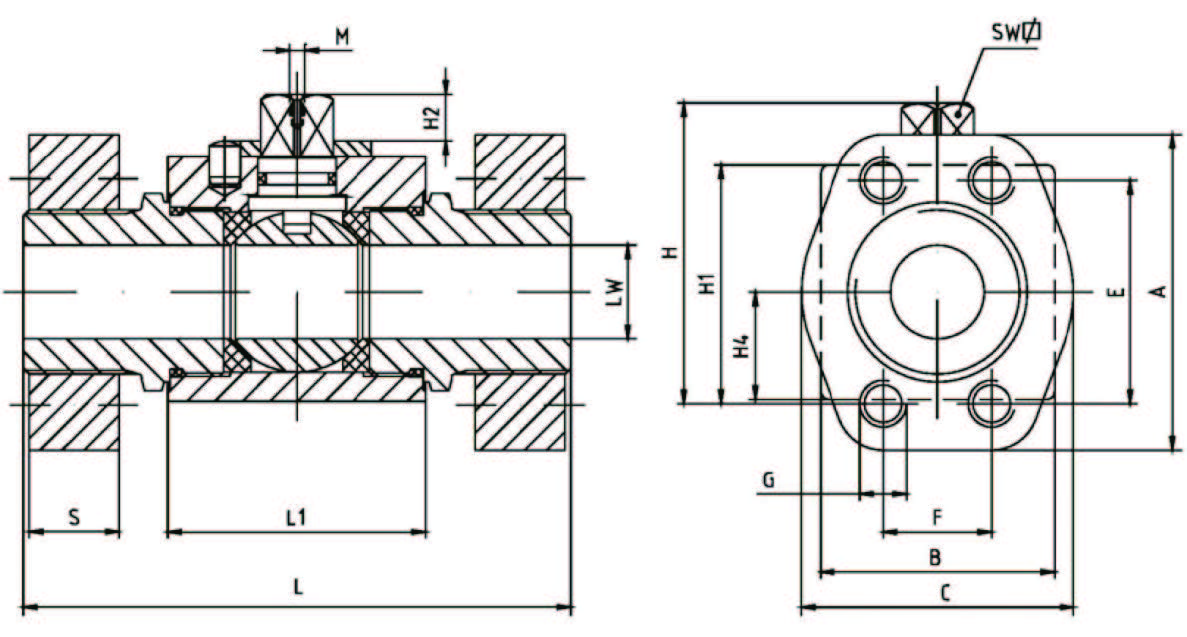

3000psi SAE flanged ball valve size and working pressure (medium and high pressure ISO6162-1)

DN	Pressure	Flange size	LW	L	A	C	E	F	G	S	L1	B	H	H1	H2	H4	M	SW
DN	bar	Flange size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
13	315	1/2”	13	104	54	46	38.1	17.5	M8	15	48	35	51	40	8	17.5	M5	9
20	315	3/4”	20	121	65	52	47.6	22.3	M10	18	62	49	73	57	12	24.5	M6	14
25	315	1”	24	133	70	59	52.4	26.2	M10	18	66	60	76	60	12	26.5	M6	14
32	250	11/4”	32	163	79	73	58.7	30.2	M10	18	80	76	104	84	13.5	38	M8	17
40	200	11/2”	38	168	94	83	69.9	35.7	M12	18	85	85	111	92	13.5	42	M8	17
50	200	2”	48	186	102	97	77.8	42.9	M12	25	100	100	130	111	13.5	50	M8	19
65/50	160	21/2”	48	174	114	109	88.9	50.8	M12	26	100	100	130	111	13.5	50	M8	19

6000psi SAE flanged ball valve size and working pressure (high pressure ISO6162-2)

DN	Pressure	Flange Size	LW	L	A	C	E	F	G	S	L1	B	H	H1	H2	H4	M	SW
DN	bar	Flange Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
13	400	1/2”	13	104	56	48	40.5	18.2	M8	16	48	35	51	40	8	17.5	M5	9
20	400	3/4”	20	121	71	60	50.8	23.8	M10	18	62	49	73	57	12	24.5	M6	14
25	400	1”	24	133	81	70	57.2	27.8	M12	24	66	60	76	60	12	26.5	M6	14
32	400	11/4”	32	163	95	78	66.6	31.8	M14	26	80	76	104	84	13.5	38	M8	17
40	400	11/2”	38	168	113	95	79.3	36.5	M16	28	85	85	111	92	13.5	42	M8	17
50	400	2”	48	186	133	114	96.8	44.5	M20	30	100	100	130	111	13.5	50	M8	19

DN	3000psi Ball valve model(POM,FPM)	6000psi Ball valve model(POM,FPM)
06	BKHU DN06 1125	BKHU3 DN06 1125*
10	BKHU DN10 1125	BKHU3 DN10 1125*
13	BKHU DN13 1125	BKHU3 DN13 1125*
20	BKHU DN20 1125	BKHU3 DN20 1125*
25	BKHU DN25 1125	BKHU3 DN25 1125*
32	BKHU DN32 1125	BKHU3 DN32 1125*
40	BKHU DN40 1125	BKHU3 DN40 1125*
50	BKHU DN50 1125	BKHU3 DN50 1125*
