    Inline Throttle Check Valve Flow Control Valves 400 L/min NPTF 315Bar NG6-30 MG/MK

    Industrial hydraulic MG/MK throttle and throttle check Valve 400 L/min NPTF 315Bar NG6-30


    Function and configuration

    Valve types MG and Mk are throttle and throttle check valves with viscosity and pressure dependent.

    ·Type MG (throttle valve)

    This valve throttles in both flow directions. Fluid flows through side hole (3) to the throttling orifice (4) formed between the valve body (2) and the adjustable sleeve (1). The cross-section of throttling orifice (4) may be steplessly varied by rotating the sleeve (1).


    ·Type MK (throttle check valve)

    In throttling direction, the spring (6) and the fluid presses the poppet (5) onto its seat, check valve is blocked. Fluid flows via the side hole (3) to the throttling orifice (4), formed between the valve body (2) and the adjustable sleeve (1).

    In the opposite direction, fluid pressure acts on the face of the poppet (5), check valve is opened and fluid flows freely. At the same time, part of the fluid flowing through the annular groove gets self-clearance as the desired effect.


    Specification


    Technical data

    Size681015202530
    Weightkg0.30.40.71.32.23.64.5
    Max.operating pressurebar315bar, 210bar (NPTF1 1/4, NPTF1 1/2)
    Cracking pressure for type MKbar0.5
    Max.flow-rateL/min400
    Viscosity ranggemm2/s10 to 800
    Fluid temperature range-30 ℃ to +80 ℃
    FluidMineral oil; Phosphate ester
    Degree of contaminationMaximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406

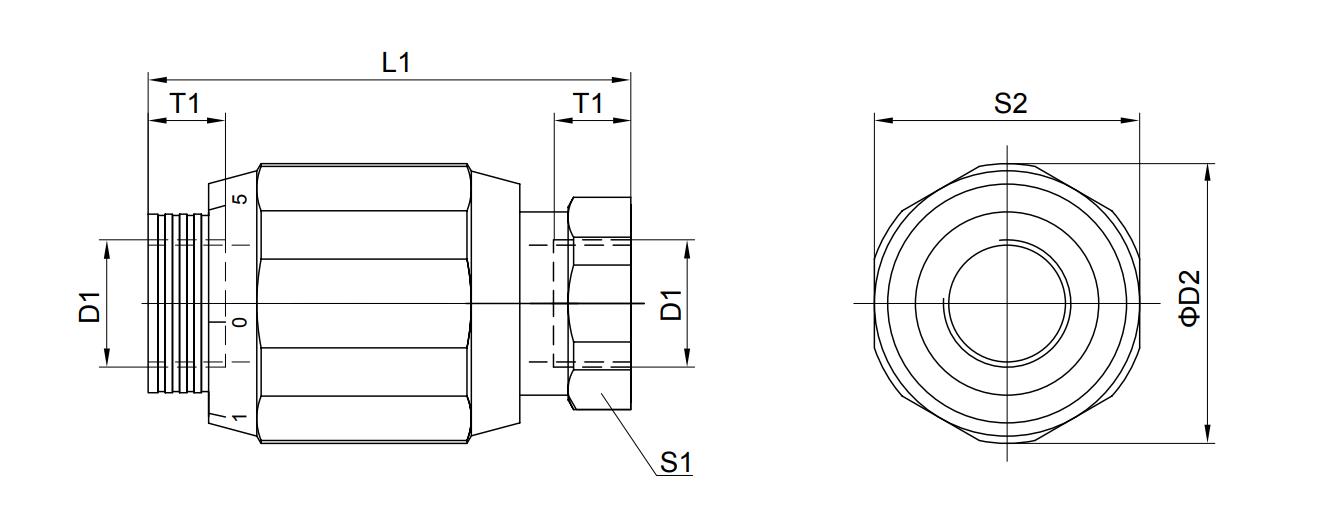

    Unit dimensions (MK and MG are the same) (Dimensions in mm)


    SizeD1D2L1S1S2Tl
    GMetricNPTFsAE
    6G 1/4M14 X 1.5NPTF 1/46SAE
    ( 9/ 16-18)
    3465 (SAE=75)223212 (SAE=14)
    8G 3/8M18 X 1.5NPTF 3/88SAE
    ( 3/4-1
    38 (SAE 48)65 (SAE=77)24 (SAE=30)36
    (SAE=45)
    12
    (SAE=17)
    10G 1/ 2M22 X 1.5NPTF 1/210SAE
    (7/8-14 )
    4880 (5AE=93)304614 (SAE=20)
    15G3/4M27X 2 -12SAE
    ( 11/16-12 )
    58100 (SAE=113)415516 (SAE=22)
    20G1M33X 2 -16SAE
    ( 1 5/ 16-12 )
    72110 (SAE=120)467018 (SAE=22)
    25G1 1/4M42X 2NPTF 1
    1/4
    20SAE
    (15/ 8-12)
    87140 (SAE=160)558520
    SAE=22)
    30G1 1/2M48X 2NPTF 1
    1/2
    24SAE
    (1 7/ 8-12 )
    93150 (SAE=160)609022 (SAE=24)
