Hydraulic type M-SR direct operated cartridge check valve 315 bar 1500L/min 52-150 large size

Configuration

Specification

.

Technical data

Connection dimensions(Dimensions in mm)

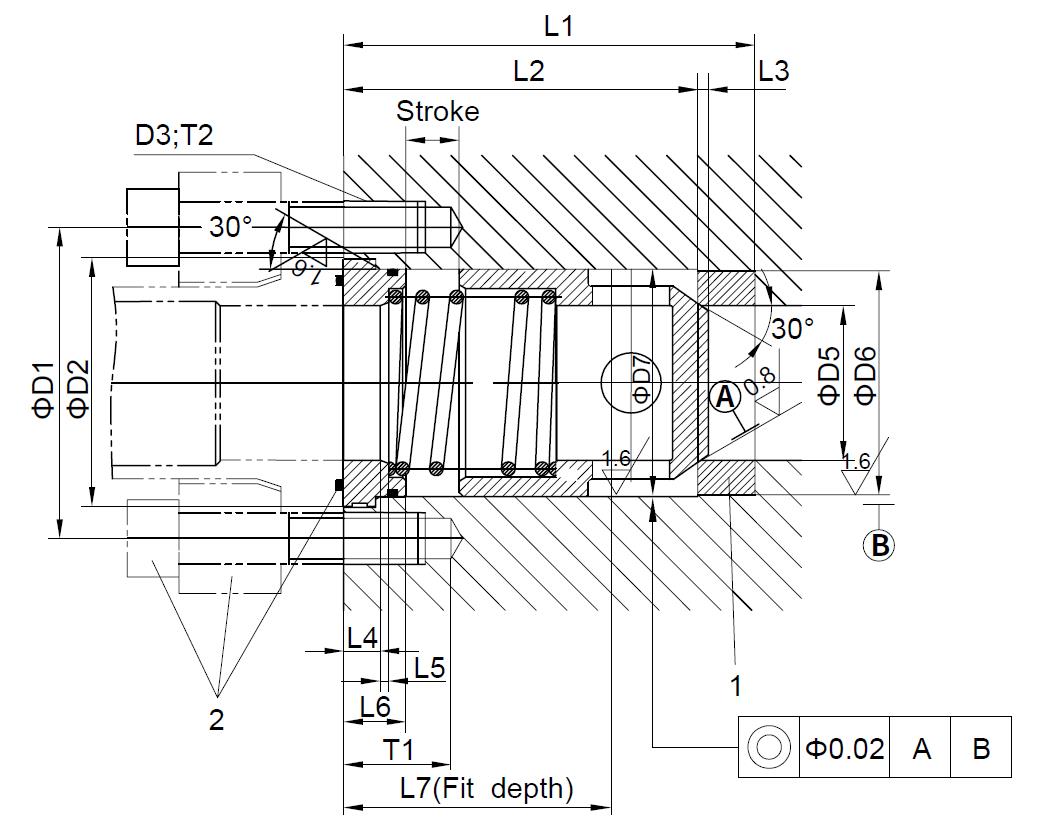

·Straight check valve cartridge sizes 52 to 150

1 Seat frozen in -60 ℃ 2 Flange, fixing screws and O-ring are not included in delivery and must be ordered separately

Notes: The valve seats ØD6 in sizes 62 to 150 are only pre-grinding. The valve seats diameter must be reduced by 60 μm in sizes 62 and 82 and reduced by 80 μm in sizes 102 to 150

Connection dimensions(Dimensions in mm)

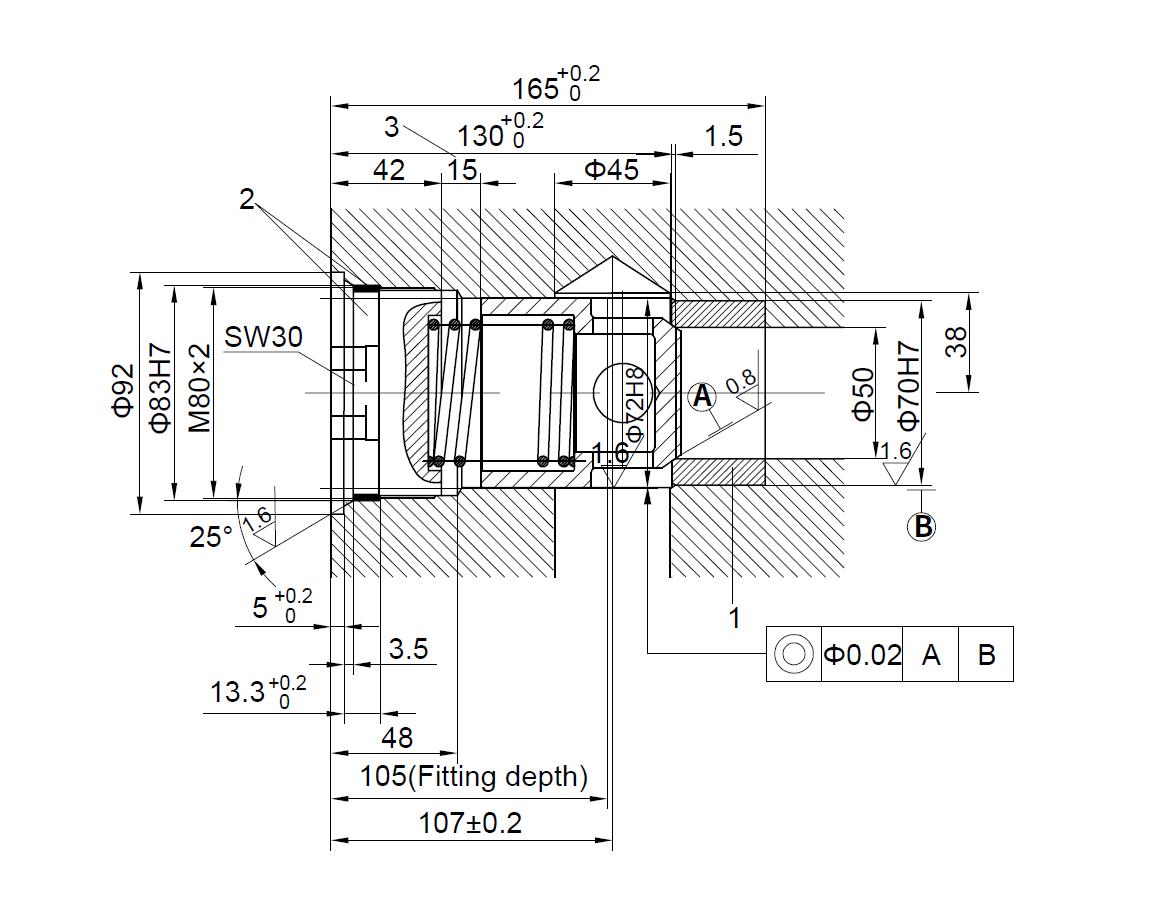

·Right angled check valve cartridge size 52

1 Seat frozen in at -60 ℃ , 2 Locking screw and seal are included in delivery , 3 Stroke

Connection dimensions(Dimensions in mm)

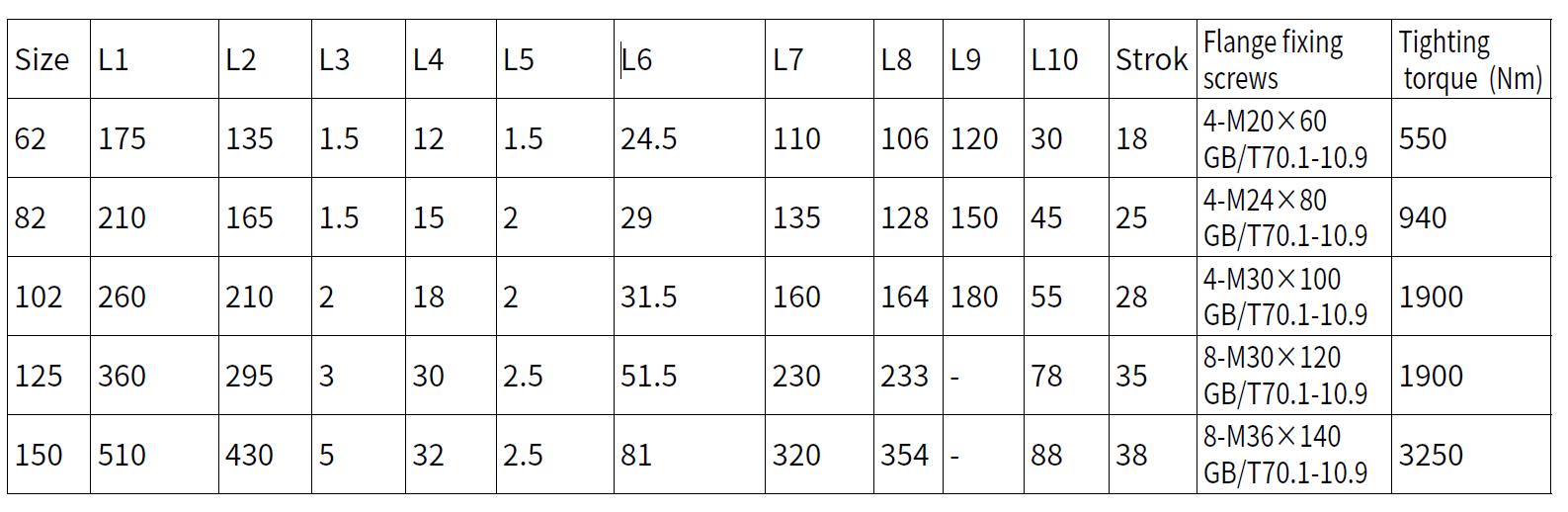

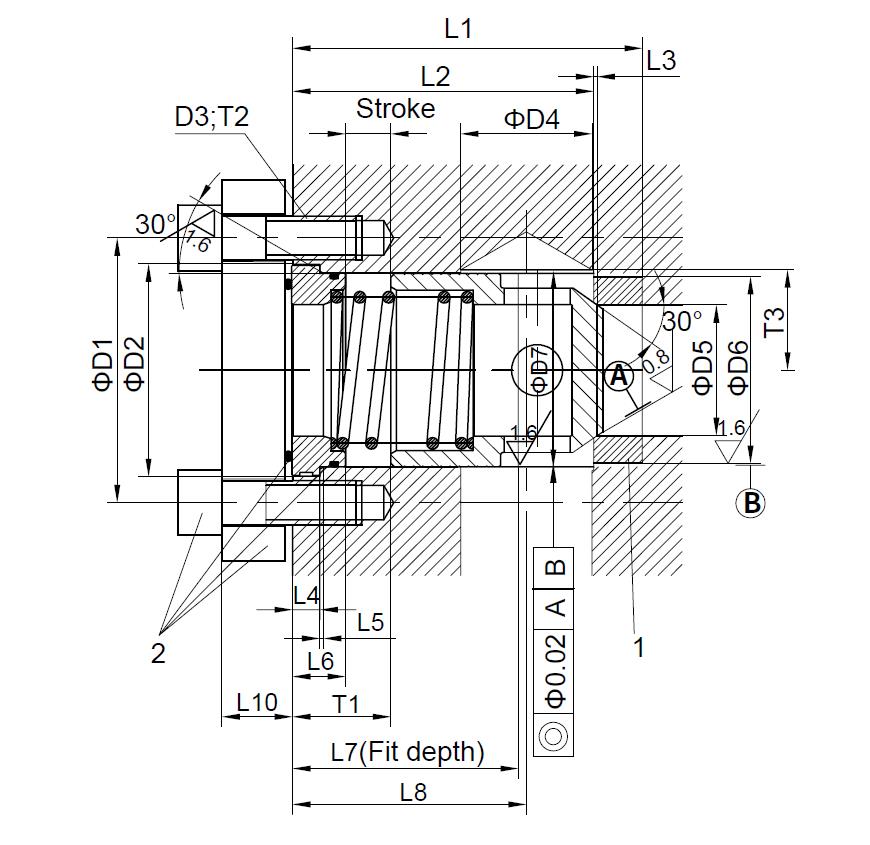

·Right angled check valve cartridge sizes 62 to 150

1 Seat frozen in at -60 ℃, 2 Locking screw and seal are included in delivery
Notes:
The valve seats ØD6 in sizes 62 to 150 are only pre-gringding.
The valve seats must be reduced by 60 μm
in sizes 62 and 82 and reduced by 80 μm
in sizes 102 to 150 .
