3℃ normal temperature industrial water-cooled chiller microcomputer
control or PLC optional
Product profile
OEPOCH chiller adopts advanced microcomputer intelligent control
system, which not only fully realizes the man-machine interface
function, but also guarantees the unit temperature control accuracy
±1 °C fine, suitable for various working conditions in industrial
production process. The product model category is complete, and the
ultra-low temperature freezer for special working conditions needs
additional customization.
Application
OEPOCH industrial water-cooled chiller is suitable for mold cooling
in the plastics industry, electroplating tank cooling in
electroplating industry, ultrasonic cleaning liquid cooling, metal
processing welding cooling, food industry cooling, chemical
industry cooling and other industrial production cooling or central
air conditioning cooling.
Features
1,Compressor imported from Europe and USA
2,Oxygen-free welding for copper pipe
3,Rs485communication function for automated management (optional)
4,Imported quality parts for longer service
5,Electrical appliances use Siemens, weidmuller, LS, MOELLER, ABB,
WEST
6,Imported microcomputer control or optional PLC control
7,Built-in safety protection device, capable of self-checking and
displaying faults, facilitating maintenance personnel to maintain
equipment
8,Save 30% energy by using high efficiency evaporators and
condensers
9,Support customer customized services, can customize equipment
according to any needs of customers
Specifications
| Model | OE-AC-03W | OE-AC-05W | OE-AC-08ED | OE-AC-10WD | OE-AC-20WD | OE-AC-30WT | OE-AC-50WF |
| Lowest temperature | 3℃ normal temperature below 0℃ can be customized |
Capacity 50Hz (Kw) 60Hz (Kw) | |
| 9.59 | 15.9 | 24.9 | 31.8 | 67.1 | 99.2 | 153.9 |
| 11.2 | 18.6 | 29.1 | 37.2 | 78.6 | 116.1 | 180.1 |
| Power supply | 3N-380V/415V 50Hz/60Hz or customize |
Input power (Kw) | 2.8 | 4.5 | 6.8 | 8.4 | 17.3 | 25.6 | 42.5 |
Compressor Power (Kw) | Hermetic scroll or piston |
| 2.25 | 3.75 | 3*2 | 3.75*2 | 7.5*2 | 7.5*3 | 9.4*4 |
| Cooling water consumption (m³/h) | 2.1-2.41 | 3.4--4.00 | 5.34-6.25 | 6.85-8.01 | 14.4-16.9 | 21.3-24.9 | 33.1-38.7 |
| Cooling water pipe diameter | G3/4 | G1 | G1-1/2 | G1-1/2 | G2 | G2-1/2 | G3 |
Chiller water (m³/h) | 1.6-1.9 | 2.7-3.2 | 4.3-5.0 | 5.5-6.4 | 11.6-13.5 | 17.1-19.9 | 26.5-30.9 |
Chiller tank (m³) | 0.038 | 0.065 | 0.11 | 0.188 | 0.285 | 0.405 | 0.61 |
| Chiller water pipe diameter | G3/4 | G1 | G1-1/2 | G2 | G2 | G2-1/2 | G3 |
| Pump power(Kw) | 0.375 | 0.75 | 0.75 | 1.5 | 2.2 | 4 | 4 |
Pump pressure (Kpa) | 242 | 290 | 290 | 205 | 220 | 250 | 250 |
Dimension (mm) | 830*460*1020 | 1080*580*1230 | 1300*610*1445 | 1300*610*1445 | 1680*775*1630 | 2200*1005*1800 | 2400*1005*1800 |
Weight (Kg) | 120 | 150 | 210 | 290 | 440 | 690 | 1000 |

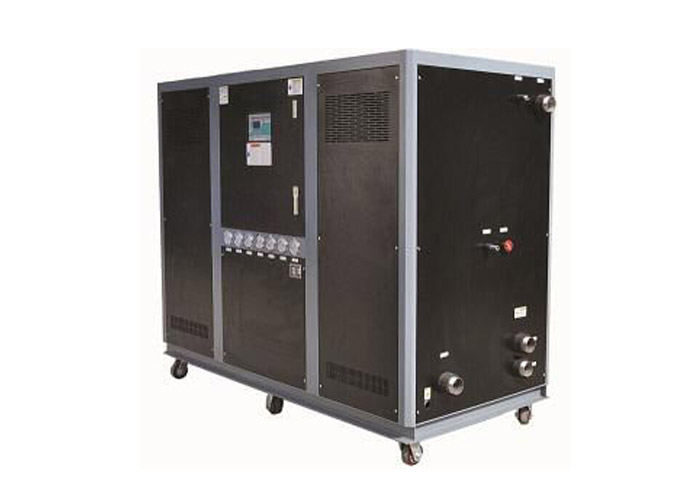

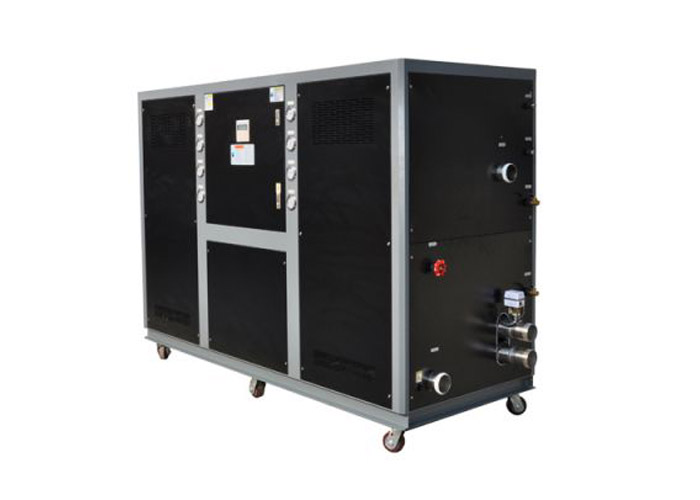

Product display
