Single Column C Frame Hydraulic Press Small Digital Display Pressure Interval Adjustable

Small digital display hydraulic press pressure interval adjustable C single column type

Product profile

The YQGS digital display hydraulic press uses high-quality load cells and digital meters to monitor pressure in real time. The pressure range can be arbitrarily set to achieve high and low voltage monitoring output alarm. Widely used in parts assembly, pressure testing, experimental testing, tensile testing, defective product monitoring, etc.

Specifications

Product Type	Unit (Unit)	Y0SG-01TS	YQGS-03TS	YQGS-05TS	YQGS-10TS	YQGS-15TS	YQGS-20TS
Nominal pressure	ton	0.3-1	0.8-1.3	1.5-5	2.5-10	4-15	5-20
Maximum stroke		75-150	75-150	100-200	100-200	100-200	100-200
Opening height	Mi	250	250	300	300	300	300
Deep Throat	Mm	120	120	150	150	175	175
Shank bole size	Mm	Phi 20*40	Phi 20*40	Phi 20*40	Phi 25*50	Phi 25*50	Phi 25*50
Descending speed	Mm	110	98	88	88	68	68
Rise Speed	Mm	110	98	88	88	68	68
Fork table	-	350*240	350*240	400*300	400*300	450*350	450*350
Motor Power "	kw	1.5	2.25	2.25	3.75	3.75	3.75
Power Supply	V	380	380	380	380	380	330
Weight	Kg	280	320	360	400	460	520

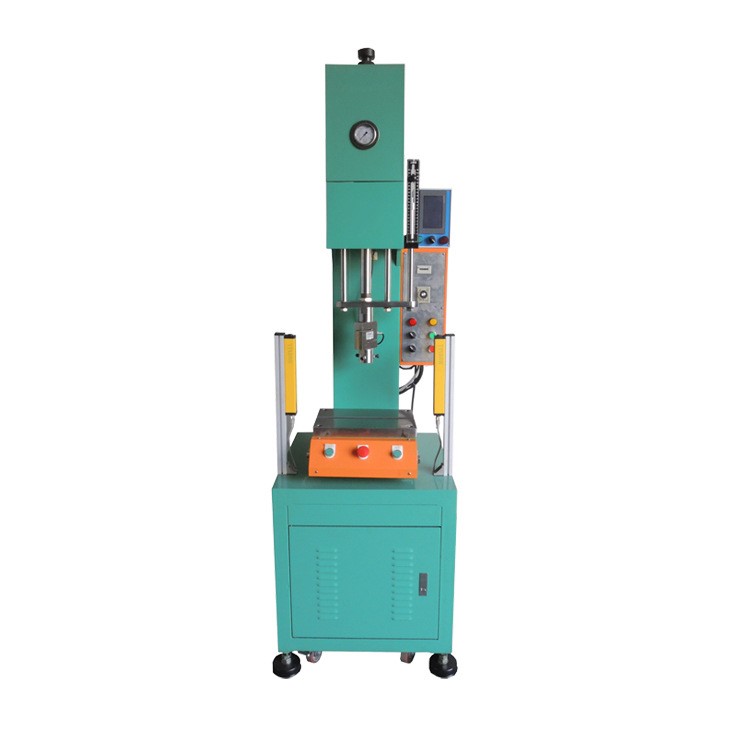

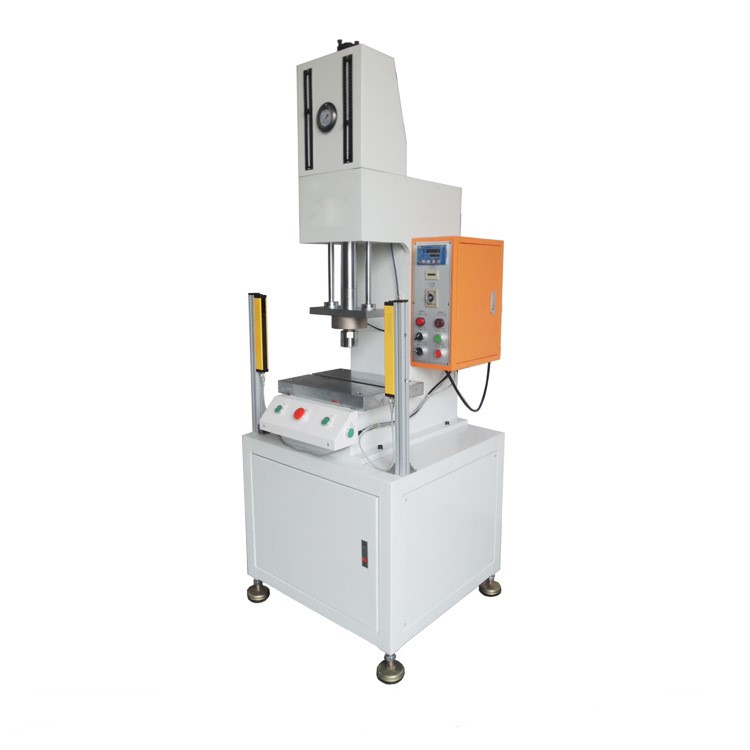

Product display
