Metal High Pressure Hydraulic Pipe Fittings , Custom Made Hydraulic Flange Fittings

Ask Lasest Price
Brand Name :	ROYAL
Model Number :	OE-C-GR
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	10000 set / 30 days
Delivery Time :	5-30 days upon order quantity

Add to Cart

Product Details
Company Profile

Metal High Pressure Hydraulic Pipe Fittings , Custom Made Hydraulic Flange Fittings

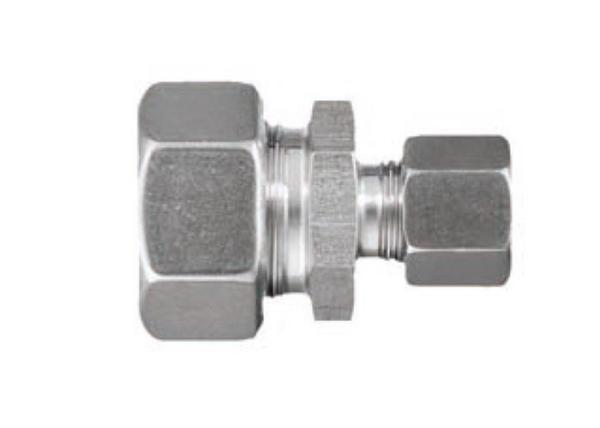

Industrial hydraulic pipe fittings 316 304 Stainless steel tube end reducer GR series L/S

Specifications

Series	Pressure	D1	D2	L1	L2	SW1	SW2	SW3	Type
L	315	8	6	45,5	11,0	14	14	17	C-GR-L08/06-SS304
L	315	10	6	47,0	12,0	17	14	19	C-GR-L10/06-SS304
L	315	10	8	47,0	12,0	17	17	19	C-GR-L10/08-SS304
L	315	12	6	48,0	13,0	19	14	22	C-GR-L12/06-SS304
L	315	12	8	48,0	13,0	19	17	22	C-GR-L12/08-SS304
L	315	12	10	49,5	14,0	19	19	22	C-GR-L12/10-SS304
L	315	15	6	50,5	14,0	24	14	27	C-GR-L15/06-SS304
L	315	15	8	50,5	14,0	24	17	27	C-GR-L15/08-SS304
L	315	15	10	52,0	15,0	24	19	27	C-GR-L15/10-SS304
L	315	15	12	52,0	15,0	24	22	27	C-GR-L15/12-SS304
L	315	18	8	52,0	14,5	27	27	32	C-GR-L18/08-SS304
L	315	18	10	53,5	15,5	27	19	32	C-GR-L18/10-SS304
L	315	18	12	53,5	15,5	27	22	32	C-GR-L18/12-SS304
L	315	18	15	56,5	16,5	27	27	32	C-GR-L18/15-SS304
L	160	22	8	56,5	17,5	32	17	36	C-GR-L22/08-SS304
L	160	22	10	57,0	17,5	32	19	36	C-GR-L22/10-SS304
L	160	22	12	57,0	17,5	32	22	36	C-GR-L22/12-SS304
L	160	22	15	59,0	18,5	32	27	36	C-GR-L22/15-SS304
L	160	22	18	60,0	18,0	32	32	36	C-GR-L22/18-SS304
L	160	28	10	60,0	20,5	41	19	41	C-GR-L28/10-SS304
L	160	28	12	60,0	19,0	41	22	41	C-GR-L28/12-SS304
L	160	28	15	62,5	19,0	41	27	41	C-GR-L28/15-SS304
L	160	28	18	61,0	19,0	41	32	41	C-GR-L28/18-SS304
L	160	28	22	64,0	21,0	41	36	41	C-GR-L28/22-SS304
L	160	35	15			46	27	50	C-GR-L35/15-SS304
L	160	35	18	66,5	19,0	46	32	50	C-GR-L35/18-SS304
L	160	35	22	69,5	21,0	46	36	50	C-GR-L35/22-SS304
L	160	35	28	70,5	21,0	46	41	50	C-GR-L35/28-SS304
L	160	42	15			55	27	60	C-GR-L42/15-SS304
L	160	42	18		20,5	55	32	60	C-GR-L42/18-SS304
L	160	42	22	70,5	22,5	55	36	60	C-GR-L42/22-SS304
L	160	42	28	71,0	22,5	55	41	60	C-GR-L42/28-SS304
L	160	42	35	75,0	21,5	55	50	60	C-GR-L42/35-SS304
Series	Pressure	D1	D2	L1	L2	SW1	SW2	SW3	Type
S	630	8	6	52,5	18,0	17	17	19	C-GR-S08/06-SS304
S	630	10	6	53,5	17,5	19	17	22	C-GR-S10/06-SS304
S	630	10	8	54,0	17,5	19	19	22	C-GR-S10/08-SS304
S	630	12	6	55,5	19,5	22	17	24	C-GR-S12/06-SS304
S	630	12	8	55,5	19,5	22	19	24	C-GR-S12/08-SS304
S	630	12	10	56,5	19,0	22	22	24	C-GR-S12/10-SS304
S	630	14	6			24	17	27	C-GR-S14/06-SS304
S	630	14	8			24	19	27	C-GR-S14/08-SS304
S	630	14	10	60,0	20,5	24	22	27	C-GR-S14/10-SS304
S	630	14	12	60,0	20,5	24	24	27	C-GR-S14/12-SS304
S	400	16	6	59,5	20,0	27	17	30	C-GR-S16/06-SS304
S	400	16	8	59,5	20,0	27	19	30	C-GR-S16/08-SS304
S	400	16	10	60,5	20,0	27	22	30	C-GR-S16/10-SS304
S	400	16	12	60,5	20,0	27	24	30	C-GR-S16/12-SS304
S	400	16	14	63,5	21,5	27	27	30	C-GR-S16/14-SS304
S	400	20	6	64,5	23,5	32	17	36	C-GR-S20/06-SS304
S	400	20	8	64,5	21,0	32	19	36	C-GR-S20/08-SS304
S	400	20	10	65,5	22,0	32	22	36	C-GR-S20/10-SS304
S	400	20	12	65,5	22,0	32	24	36	C-GR-S20/12-SS304
S	400	20	14	68,5	23,0	32	27	36	C-GR-S20/14-SS304
S	400	20	16	69,5	23,0	32	30	36	C-GR-S20/16-SS304
S	400	25	6			41	17	46	C-GR-S25/06-SS304
S	400	25	8	71,5	26,5	41	19	46	C-GR-S25/08-SS304
S	400	25	10	72,5	27,5	41	22	46	C-GR-S25/10-SS304
S	400	25	12	72,5	24,0	41	24	46	C-GR-S25/12-SS304
S	400	25	14	74,5	26,5	41	27	46	C-GR-S25/14-SS304
S	400	25	16	74,5	25,5	41	30	46	C-GR-S25/16-SS304
S	400	25	20	79,0	25,5	41	36	46	C-GR-S25/20-SS304
S	400	30	10			46	22	50	C-GR-S30/10-SS304
S	400	30	12	74,5	27,0	46	24	50	C-GR-S30/12-SS304
S	400	30	14			46	27	50	C-GR-S30/14-SS304
S	400	30	16	78,5	26,0	46	30	50	C-GR-S30/16-SS304
S	400	30	20	81,5	26,0	46	36	50	C-GR-S30/20-SS304
S	400	30	25	86,0	26,5	46	46	50	C-GR-S30/25-SS304
S	315	38	10			55	22	60	C-GR-S38/10-SS304
S	315	38	12			55	24	60	C-GR-S38/12-SS304
S	315	38	14			55	27	60	C-GR-S38/14-SS304
S	315	38	16	85,0	26,0	55	30	60	C-GR-S38/16-SS304
S	315	38	20	88,0	28,0	55	36	60	C-GR-S38/20-SS304
S	315	38	25	94,0	29,0	55	46	60	C-GR-S38/25-SS304
S	315	38	30	95,5	29,5	55	50	60	C-GR-S38/30-SS304
The above models are all made of stainless steel. The suffix plus SS304 is made of stainless steel 304. The addition of SS316 indicates that the material is stainless steel 316. The addition of CF indicates that the material is carbon steel.
