High Pressure Straight Through Ball Valve With Drain DN50 316Ti Stainless Steel RHK

Industrial hydraulic RHK high pressure stainless steel straight through ball valve DN4-50

RHK is only available in stainless steel body, standard features include handles, and can be adapted to different media and operating conditions depending on the material combination. In addition, the valve interface also supports G thread, NPT, 24 ° cone metric thread to meet different needs of customers.

Specifications

Stainless steel ball valve material combination table

Material combination code	Model example	Valve body	Ball seat seal	Stem seal	Highest pressure	Applicable medium
4425	RKH-G3/4-20 4425	316Ti	POM	FPM	400 bar	Water, oil, -30 ° C ~ +100 ° C
4465	RKH-G3/4-20 4465	316Ti	PEEK	FPM	400 bar	Water, oil, -30 ° C ~ +100 ° C
4466	RKH-G3/4-20 4466	316Ti	PEEK	EPDM	400 bar	Chemical medium suitable for ethylene propylene rubber, -50 ° C ~ +150 ° C
4447	RKH-G3/4-20 4447	316Ti	PTFE	KALREZ	100 bar	Excellent corrosion resistance, -15 ° C ~ +250 ° C

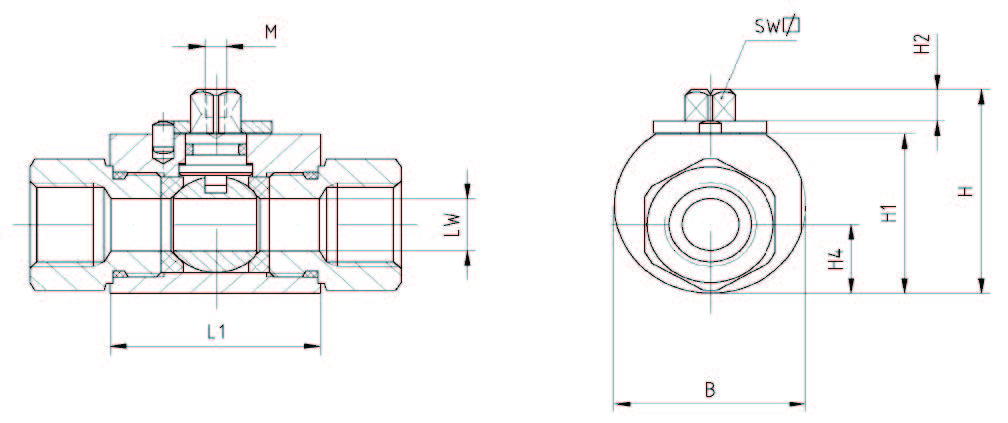

Body size and working pressure for various interface types

DN	Pressure bar (Seal)			L1	B	H	H1	H2	H4	M	SW
DN	PEEK	POM	PTFE	mm	mm	mm	mm	mm	mm	mm	mm
4 8	400	400	100	36	35	43.5	32	8	13	M5	9
10	400	400	100	43	42	49.5	38	8	16.5	M5	9
13	400	400	100	48	45	52	40	8	18	M5	9
16	400	400	100	48	50	62	46	12	19	M6	12
20	400	400	100	62	60	74	57	12	25.5	M6	14
25	400	400	100	66	65	79	63	12	28	M6	14
32	350	350	100	81	90	104	84	13.5	38	M8	17
40	350	350	100	85	83	111	92	13.5	41.5	M8	17
50	350	350	100	100	100	130	111	13.5	50	M8	19

Ball valve interface form	Ball valve model	DN	Actual inner diameter	D	RA	Total length of valve	i	SW1	Weiwei
Ball valve interface form	(seal:POM,FPM)	DN	LW	D	mm	L	mm		kg
Inch straight pipe thread (G thread)	RKH G1/8 04 4425	4	5	G 1/8″	-	69	9	22	0.35
	RKH G1/4 06 4425	6	6	G 1/4″	-	69	12	22	0.35
	RKH G3/8 08 4425	8	8	G 3/8	-	69	12	22	0.35
	RKH G3/8 10 4425	10	10	G 3/8″	-	73	12	27	0.5
	RKH G1/2 13 4425	13	13	G 1/2″	-	85	14	30	0.65
	RKH G3/4 20 4425	20	20	G 3/4″	-	96	17	41	1.5
	RKH G1 25 4425	25	24	G 1″	-	113	19	46	2
	RKH G11/4 25 4425	25	24	G11/4″	-	121	20	50	2.1
	RKH G11/4 32 4425	32	32	G11/4″	-	110	20	60	3.8
	RKH G11/2 32 4425	32	32	G11/2″	-	135	24	60	3.8
	RKH G11/2 40 4425	40	38	G11/2″	-	120	24	70	6.1
	RKH G2 40 4425	40	38	G2″	-	147	26	75	6.1
	RKH G2 50 4425	50	48	G2″	-	140	28	85	9.1
American taper pipe thread NPT	RKH 1/8NPT 04 4425	4	5	1/8″NPT	-	69	12	22	0.35
	RKH 1/4NPT 06 4425	6	6	1/4″NPT	-	69	17	22	0.35
	RKH 3/8NPT 10 4425	10	10	3/8″NPT	-	73	17	27	0.5
	RKH 1/2NPT 13 4425	13	13	1/2″NPT	-	92	22	30	0.65
	RKH 3/4NPT 20 4425	20	20	3/4″NPT	-	97	23	41	1.5
	RKH 1NPT 25 4425	25	24	1″NPT	-	113	27	46	2
	RKH 11/4NPT 32 4425	32	32	11/4″NPT	-	115	28	60	3.8
	RKH 11/2NPT 40 4425	40	38	11/2″NPT	-	135	28	70	6.1
	RKH 2NPT 50 4425	50	48	2″ NPT	-	140	30	85	9.1 181
Metric thread 24° cone DIN2353 Light Series "L"	RKH 06L 04 4425	4	5	M12×1.5	6	67	7	22	0.3
	RKH 08L 06 4425	6	6	M14×1.5	8	67	7	22	0.3
	RKH 10L 08 4425	8	8	M16×1.5	10	71	8	22	0.3
	RKH 12L 10 4425	10	10	M18×1.5	12	75	8	27	0.5
	RKH 15L 13 4425	13	13	M22×1.5	15	84	9	30	0.6
	RKH 18L 13 4425	13	13	M26×1.5	18	84	9	30	0.6
	RKH 18L 16 4425	16	15	M26×1.5	18	83	9	32	0.75
	RKH 22L 20 4425	20	20	M30×2	22	102	11	41	1.5
	RKH 28L 25 4425	25	24	M36×2	28	108	11	46	2
	RKH 35L 25 4425	25	24	M45×2	35	114	13	50	2.1
	RKH 35L 32 4425	32	32	M45×2	35	128	13	60	3.6
	RKH 42L 32 4425	32	32	M52×2	42	128	13	60	3.6
	RKH 42L 40 4425	40	38	M52×2	42	133	13	70	5.9
Metric thread 24° cone DIN2353 Heavy Series "S"	RKH 08S 04 4425	4	5	M16×1.5	8	73	9	22	0.35
	RKH 10S 06 4425	6	6	M18×1.5	10	73	9	22	0.35
	RKH 12S 08 4425	8	8	M20×1.5	12	77	9	22	0.35
	RKH 14S 10 4425	10	10	M22×1.5	14	84	11	27	0.5
	RKH 16S 13 4425	13	13	M24×1.5	16	87	11	30	0.6
	RKH 20S 16 4425	16	15	M30×2	20	91	13	32	0.75
	RKH 25S 20 4425	20	20	M36×2	25	110	15	41	1.5
	RKH 30S 25 4425	25	24	M42×2	30	120	17	46	2.1
	RKH 38S 25 4425	25	24	M52×2	38	125	19	55	2.3
	RKH 38S 32 4425	32	32	M52×2	38	140	19	60	3.7

· Welded ball valve

Add “W-” to the ball valve type to indicate the welded interface (see table below), for example: W-BKH 20S×2 16 11251, “×2” means the welded joint wall thickness S is 2.

·Sleeve type connected ball valve

Add "C-" to the ball valve model to indicate the card sleeve interface (see table below), eg C-BKH 20S 16 11251

Ordering example:

To order a ball valve with ISO5211 standard threaded hole, please add "D" after the original RKH stainless steel ball valve model.

Such as: RKH G3/4 20 4425 D

The valve body is forged, and the length of the screw must be matched when the bracket is installed.
