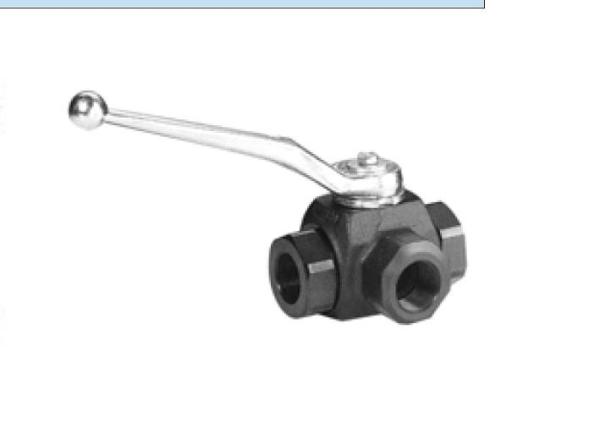

FPM / EPDM Connect High Pressure 3 Way Ball Valve BK2 SK3 Square DN4 - 50mm

Industrial hydraulic stainless steel three-way high pressure ball valve BK2/SK3 square

Body size and working pressure for various interface types

(PEEK: polyetheretherketone seal, good corrosion resistance; POM: polyoxymethylene seal; PTFE reinforced PTFE seal, excellent corrosion resistance)

DN	Pressure bar			L1		B		H		H1		H2	H4		M	SW
DN	C.S	SS		mm		mm				mm		mm	mm	mm	mm	mm
	POM	PEEK	PTFE	C.S	SS	C.S	SS	C.S	SS	C.S	SS		C.S	SS
4	400	400	100	36	40	26	35	43.5	46.5	32	35	8.5	13	16	M5	9
6	400	400	100	36	40	26	35	43.5	46.5	32	35	8.5	13	16	M5	9
8	400	400	100	36	40	26	35	43.5	46.5	32	35	8.5	13	16	M5	9
10	400	400	100	43	45	32	42	49	51.5	38	40	8.5	16.5	18	M5	9
13	350	350	100	48	50	35	47	51	56	40	40	8.5	17.5	17	M5	9
16	350	-	-	48	-	38	-	62	-	46	-	12	19	-	M6	12
20	350	350	100	61	65	49	61	73	73.5	57	57	12.5	24.5	24.5	M6	14
25	350	350	100	65	80	60	63	76	81.5	60	65	12.5	26.5	30	M6	14
32	350	350	100	80	100	76	78	104	99	84	80	14	38	38	M8	17
40	350	250	100	85	105	83	85	111	109	92	90	14	41.5	42	M8	17
50	350	250	100	100	120	100	100	130	139	111	120	14	50	62	M8	19

Note, The sealing function of the BK3/SK3 standard ball valve is only valid in the following two cases:

(1) The interface pressure that is turned off is zero;

(2) The pressure of the two connected interfaces is higher than the pressure of the closed interface;

If all interfaces are required to be pressurized (PN1=PN2), or a three-way ball valve for gaseous media, then

Another three-way ball valve with special sealing structure should be marked with “A” after the model.

Ball valve interface form	C.S ball valve model	SS ball valve model	DN	Inner diameter LW	D	RA	L	L10	i
Ball valve interface form	POM,FPM	PEEK,FPM	DN	Inner diameter LW	D	mm	mm	mm	mm
Inch straight pipe thread (G thread)	BSPP BK3 G1/8 04 1125	BK3 G1/8 04 4465	4	5	G 1/8″	-	69	32	9
	BK3 G1/4 06 1125	BK3G1/4 06 4465	6	6	G 1/4″	-	69	32	12
	BK3 G3/8 08 1125	BK3G3/8 08 4465	8	7	G 3/8″	-	69	37	12
	BK3 G3/8 10 1125	BK3G3/8 10 4465	10	9	G 3/8″	-	73	35	12
	BK3 G1/2 13 1125	BK3G1/2 13 4465	13	11.5	G 1/2″	-	85	37	14
	BK3 G1/2 16 1125	-	16	14	G 1/2″	-	84	38	14
	SK3 G3/4 20 2125	BK33/4 20 4465	20	18	G 3/4″	-	96	47	17
	SK3 G1 25 2125	BK3G1 25 4465	25	22	G 1″	-	113	55	19
	SK3 G11/4 25 2125	BK3G11/4 25 4465	25	22	G11/4″	-	121	55	20
	SK3 G11/4 32 3125	BK3G11/4 32 4465	32	30	G11/4″	-	110	70	20
	SK3 G11/2 40 3125	BK3G11/2 40 4465	40	35	G11/2″	-	120	72	24
	SK3 G2 50 3125	BK3G2 50 4465	50	44	G2″	-	140	85	28
American taper pipe thread NPT	BK3 1/8NPT 04 1125	BK3 1/8NPT 04 4465	4	5	1/8″NPT	-	69	32	12
	BK3 1/4NPT 06 1125	BK3 1/4NPT 06 4465	6	6	1/4″NPT	-	69	32	17
	BK3 3/8NPT 10 1125	BK3 3/8NPT 10 4465	10	9	3/8″NPT	-	73	35	17
	BK3 1/2NPT 13 1125	BK3 /2NPT 13 4465	13	11.5	1/2″NPT	-	92	42	22
	BK3 3/4NPT 20 1125	BK3 3/4NPT 20 4465	20	18	3/4″NPT	-	97	47	23
	BK3 1 NPT 25 1125	BK3 1NPT 25 4465	25	22	1″NPT	-	113	55	27
	BK3 11/4NPT 25 1125	BK3 11/4NPT 25 4465	25	22	11/4″NPT	-	131	55	28
	SK3 11/2NPT 40 3125	BK3 11/2NPT 40 4465	40	35	11/2″NPT -	-	135	75	28
	SK3 2NPT 50 3125	BK3 2NPT 50 4465	50	44	2″NPT	-	140	85	30
Metric thread 24° cone DIN2353 light series "L" BK3 08L 06 1125	BK3 06L 04 1125	BK3 06L 04 4465	4	5	M12×1.5	6	67	32	7
		BK3 08L 06 4465	6	6	M14×1.5	8	67	32	7
	BK3 10L 08 1125	BK3 10L 08 4465	8	7	M16×1.5	10	71	32	8
	BK3 12L 10 1125	BK3 12L 10 4465	10	9	M18×1.5	12	75	35	8
	BK3 15L 13 125	BK3 15L 13 4465	13	11.5	M22×1.5	15	84	42	9
	BK3 18L 13 1125	BK3 18L 13 4465	13	11.5	M26×1.5	18	84	42	9
	BK3 18L 16 1125	－	16	14	M26×1.5	18	83	43	9
	SK3 22L 20 2125	SK3 22L 20 4465	20	8	M30×2	22	102	47	11
	SK3 28L 25 2125	SK3 28L 25 4465	25	22	M36×2	28	108	55	11
	BK3 35L 25 1125	BK3 35L 25 4465	25	22	M45×2	35	114	60	13
	SK3 35L 32 3125	SK3 35L 32 4465	32	30	M45×2	35	128	69	13
	SK3 42L 40 3125	SK3 42L 40 4465	40	35	M52×2	42	133	74	13
Metric thread 24° cone DIN2353 Heavy Series "S"BKH 08S 04 1125	BK3 06S 04 1125	BK3 06S 04 4465	4	5	M14×1.5	6	71.5	32	9
		BKH 08S 04 4465	4	5	M16×1.5	8	73	32	9
	BK3 10S 06 1125	BK3 10S 06 4465	6	6	M18×1.5	10	73	32	9
	BK3 12S 08 1125	BK3 12S 08 4465	8	7	M20×1.5	12	77	32	9
	BK3 14S 10 1125	BK3 14S 10 4465	10	9	M22×1.5	14	84	35	11
	BK3 16S 13 1125	BK3 16S 13 4465	13	11.5	M24×1.5	16	87	42	11
	BK3 20S 13 1125	BK3 20S 13 4465	13	11.5	M30×2	20	91	42	13
	BK3 20S 16 1125	－	16	14	M30×2	20	91	43	13
	SK3 25S 20 2125	SK3 25S 20 4465	20	18	M36×2	25	110	47	15
	SK3 30S 25 2125	SK3 30S 25 4465	25	22	M42×2	30	120	55	17
	BK3 38S 25 1125	BK3 38S 25 4465	25	22	M52×2	38	124	60	19
	SK3 38S 32 3125	SK3 38S 32 4465	32	30	M52×2	38	140	74	19

*The ball valve of the DIN2353 interface type can be equipped with a welded joint to become a welded ball valve, as shown on the right.

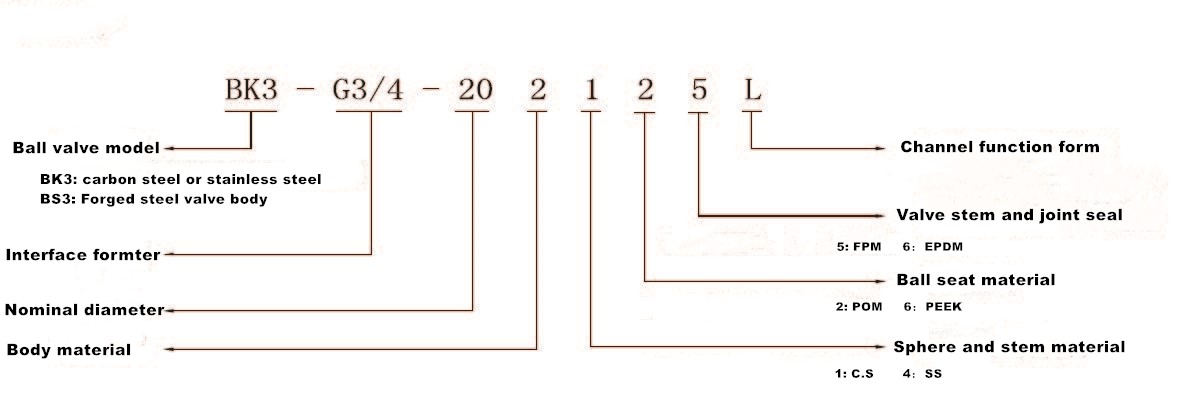

Ordering example W-BK3-15L×2 13 1123 (See the table above for specific model sizes)

“W-” means welded type, “15” means welded outer diameter RA is 15mm

"×2" indicates that the wall thickness S of the welded joint is 2 mm.

**Ball valve with snap-on interface is also available (DIN2353), as shown on the right

Ordering example C-BK3-15L 13 1123 (See the table above for specific model sizes)

“C-” means ferrule type, “15” means outer diameter RA of steel pipe is 15mm

BK3 three-way high pressure ball valve with interlocking handle (please inquire when ordering)

DN	L	L1	B	S
8	85	59	35	6
10	95	63	40	6
13	100	65	45	6
16	126	88	45	8
20	135	86	60	10
25	173	120	65	10
