Manual / Pneumatic Hydraulic Ball Valves BKHU , Three Way Two Way Ball Valve C.S Plate Type

Industrial hydraulic C.S plate type high pressure ball valve BKHU Two-way/three-way

BKHU pressure plate type high pressure ball valve has three-way and two-way parts. The valve body is fixed by six countersunk screws. It has high pressure resistance, stable quality and long service life.

The sealing function of the three-way ball valve BKHU 3 standard valve is valid only in the following two cases

(1) The closed port pressure is zero;

(2) The pressure of the two connecting ports is higher than the closing port pressure;

DN	Pressure	Inner diameter LW	a	B	b	b1	b2	b3	d	d1	d2	d3×Hole depth	H
DN	bar	Inner diameter LW	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
6	500	6	39	49	35	7.5	9.5	7.5	6	13	8.5	-	49
10	500	9	44	55	40	8	17	8	9.5	15	9	13.5×8.5	52
13	500	13	58	60	45	7.5	24.5	8	13	20	9	13.5×8.5	61
20	400	20	69	70	51	11	29	10	20	30	10.5	17.5×10.5	86
25	400	24	81	80	60	11	31	11	24	35	13	18.5×12.5	96
32	315	32	96	100	78	12	40.5	17.5	32	40	13	19.5×12.5	119
40	315	38	112	130	95	28.5	42.5	42.5	38	48.5	17	25.0×16.5	119
50	315	48	136	150	112	38	47	47	48	55	22	33.0×21.5	134

DN	H1	H2	H4	e	L	I	I1	I2	I3	I4	SW	SW□	M	weight
DN	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg
6	38	8	19	2	57	42	-	6	31.5	22	27	9	M5	1.1
10	41	8	19	2	71	55	-	6	42	25	30	9	M5	2
13	50	8	27	2	98.5	83	41.5	7	56	31.3	32	9	M5	2.3
20	70	12	38.5	3	118	97	48.5	7	67	38	41	14	M6	3.4
25	80	12	45	3	137	115	57.5	8	74	43	46	14	M6	5.2
32	100	13.5	54	3	165.5	136	68	10	90.5	50	60	17	M8	10.5
40	100	13.5	50	3	183	112	56	10	98.5	56	70	17	M8	15.1
50	115	13.5	54	3	221	136	68	20	115	68	85	19	M8	24

Ball valve model

DN	Common two-way ball valve model	Common three-way ball valve model
06	BKHU DN06 1125	BKHU3 DN06 1125*
10	BKHU DN10 1125	BKHU3 DN10 1125*
13	BKHU DN13 1125	BKHU3 DN13 1125*
20	BKHU DN20 1125	BKHU3 DN20 1125*
25	BKHU DN25 1125	BKHU3 DN25 1125*
32	BKHU DN32 1125	BKHU3 DN32 1125*
40	BKHU DN40 1125	BKHU3 DN40 1125*
50	BKHU DN50 1125	BKHU3 DN50 1125*

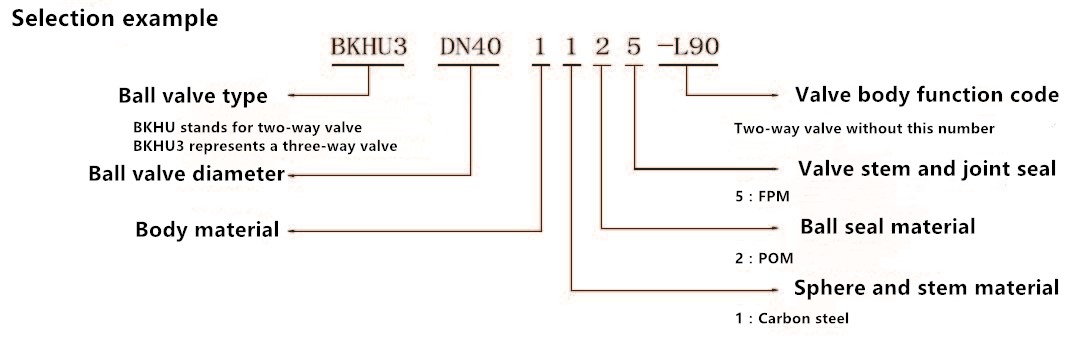

*Please specify the channel function code when ordering the three-way ball valve. See the ordering example.
