    Industrial hydraulic small diameter high pressure stainless steel needle valve SS316L B12

    Ask Lasest Price
    Brand Name : ROYAL
    Model Number : OE-C- B12
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 set / 30 days
    Delivery Time : 5-30 days upon order quantity
    • Product Details
    • Company Profile

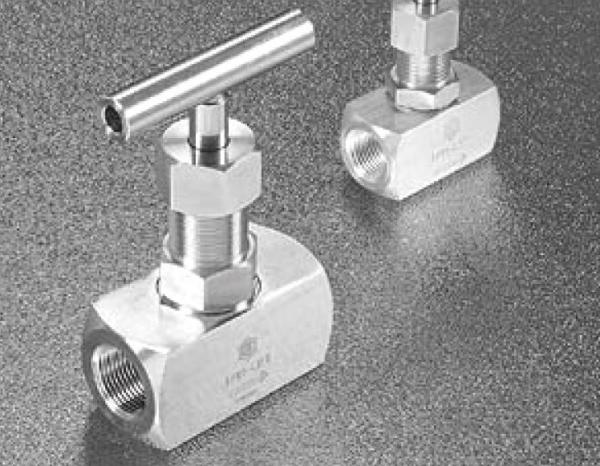

    Industrial hydraulic small diameter high pressure stainless steel needle valve SS316L B12

    Industrial hydraulic small diameter high pressure stainless steel needle valve 316L B12

    B12 Series Valves: A wide range of chemical applications for a wide range of gases and liquids. Suitable for many occasions such as instrument test systems, gas processing systems, etc.

    Features

    ·Valve diameter: 5mm

    ·Working pressure: 400Bar

    ·Maximum working temperature: PTFE sealing packing is 200 ° C; graphite sealing packing is 500 ° C

    · Stem seal: three forms available 1) PTFE packing (standard configuration) 2) graphite packing 3) bellows seal (zero leakage)

    • The sealing packing is located at the lower part of the stem thread to protect the stem threads, ensuring that the valve can be used at temperatures up to 500 °C.

    ·The valve stem and the valve head are of a split structure. When the valve stem rotates, the valve head only moves up and down without rotating, which can prolong the service life of the valve head.

    ·The bellows seal structure can be provided, and the leakage at the stem is almost zero, reaching the ultra-low leakage of 1×10-8 mbar l/s required by the nuclear power plant.

    (according to the helium leak test)

    · Valves for oxygen degreased and decontaminated are available, sealed to PTFE and pressured to PN250Bar.

    he high pressure end.

    The B12 series of needle valves are available in a variety of interface styles, and the ports on both ends of the needle valve can be freely combined. Users can save a lot of transition joints, the following interface form can reach the working pressure of PN 400 Bar.


    Interface formSize mmApplicable valveInterface formSize mmApplicable valve
    Inch threadBSPPInterface codeGLB12A7A11Detachable weldingInterface codeDdLB12A7A11
    GI18G1/8〞9SK88436
    GI14G1/4〞14SK1010636
    GI38G3/8〞14SK1212836
    GI12G1/2〞17SK1414836
    GI34G3/4〞19SK16161038
    GI01G1〞21WeldedInterface codeDSdB12A7A11
    American outer taper threadNPTInterface codeNLB12A7A11SZ121227
    NI181/8〞NPT10SZ1313.52.67
    NI141/4〞NPT11SZ14142.57
    NI383/8〞NPT12SZ1717.22.610
    NI121/2〞NPT15SZ20202.610
    NI343/4〞NPT17SZ2221.33.210
    NI011〞NPT19SZ24247.110
    American outer taper threadNPTInterface codeNLB12A7A11SZ2726.9510
    NA181/8〞NPT8External threaded instrument interfaceInterface codeDLdB12A7A11
    NA141/4〞NPT12GM18G1/8〞10-
    NI383/8〞NPT12GM14G1/4〞135
    NA121/2〞NPT14GM38G3/8〞165.5
    NA343/4〞NPT16GM12G1/2〞206
    NA011〞NPT19MM20M20×1.5206
    Double card socket connectionInterface codedB12A7A11Docking instrument interfaceInterface codeDIdB12A7A11
    KL66SP14G1/4〞3.55.5
    KL88SP12G1/2〞5.57
    KL1010SP20M20×1.55.57
    KL1212
    KL1414
    KL1515Instrumented interface with live nutInterface codeDI

    d

    B12A7A11
    KL1616LG18G1/8〞34
    KL1818LG14G1/4〞3.55.5
    KL2020LG38G3/8〞46
    KL2222LG12G1/2〞5.57
    KL2525LM20M20*1.55.57
