Variable Hydraulic Flow Valve In Line 375 L/min threaded 350Bar NG6-30 DV(P)

Industrial hydraulic DV(P) throttle and throttle check Valve 375 L/minthreaded 350Bar NG6-30

Features

– For direct in-pipe mounting

– For control panel mounting

– Threaded connection

– Good repeatability of set values due to color scale

– Variant, optional.

Function and configuration

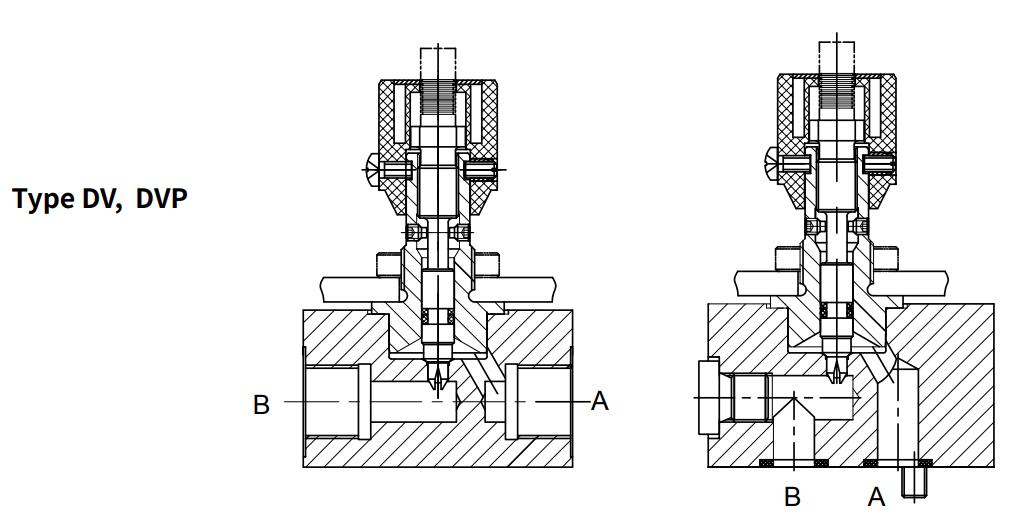

Throttle valve of type DV, DVP and check valve of type DRV, DRVP are flow control valves to adjust movement speed of actuators simply and exactly. These valve can also be used as shut-off valve when completely shut. The scale of triangle shows how large the flow is (The larger the triangle is and the greater the flow is ). At the same time, for resetting again, it can be restored to the preset position.

Symbols

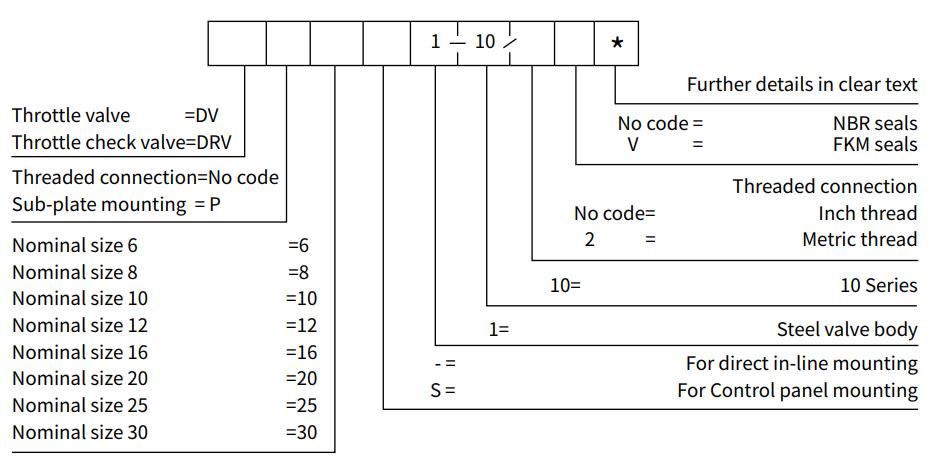

Specification

Symbols

Size			6	8	10	12	16	20	25	30
Max.Operating pressure		bar	350
Check valve cracking pressure		bar	5
Weight	Type DV	kg	0.12	0.53	0.7	0.9	1.5	2.5	3.3	3.8
	Type DVP		0.25	0.7	1	1.3	2.6	4.3	8.3	11.2
	Type DRV		0.13	0.6	0.7	0.9	1.5	3.1	4.1	5.3
	Type DRVP		0.26	0.7	1	1.4	2.7	4.7	8.8	12.2
Fluid			Mineral oil; phosphate ester
Fluid temperature range		℃	-20 to +80
Viscosity		mm2/s	2.8~500
Installation position			Optional
Degree of contamination			Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406

Unit dimensions

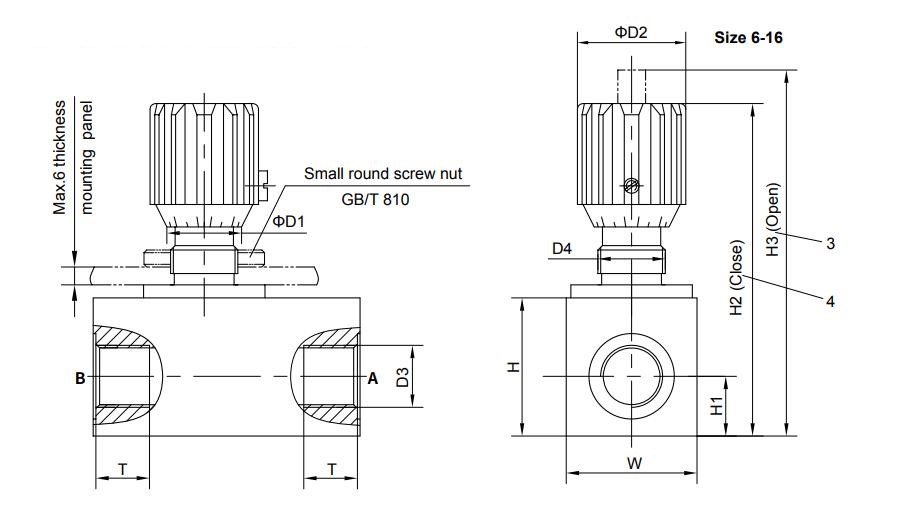

· Threaded-connection (Type DV)

Size	WXH	φD1	φD2	D3		D4	H1	H2	H3	Ll	L2	SW	T
6	20X 20	15	24	G l / 8	M10X1	M12 X 1.25	10	64	68	19.5	39		9
8	34 X30.5	20	29	G l / 4	M14X 1.5	M18X 1.5	12.5	83	90	32.5	63.5		12
10	36.5X38.5	20	29	G3/8	M18 X 1.5	M18 X 1.5	16	95	103	33	66		12
12	37 X38	26	37.5	G1/2	M22 X 1.5	M22 X 1.5	17.5	101.5	109.5	44.5	80		14
16	45 X 52	26	37.5	G3/4	M27X2	M22X 1.5	22.5	124	134.5	44.5			16
20	57 X 56.5	38	50	G1	M33 X2	M36X 1.5	26	162.5	178.5	49.5	99	19	18
25	63X66	38	50	Gl/4	M42 X 2	M36X 1.5	30	167	186	54.5	109	19	20
30	73X76	38	50	Gl/2	M48X 2	M36X 1.5	35	177.5	196	54.5	109	19	22

Unit dimensions

· Threaded-connection (Type DRV)

1 Flow increases with anti-clockwise rotation 2 Flow reduces with clockwise rotation
3 Throttle fully opens 4 Throttle closes

Size	WXH	φD1	φD2	D3		D4	H1	H2	H3	Ll	L2	SW	T
6	20X 21	15	24	G1/8	M10X1	M12X 1.25	10	65	70	28	46		9
8	34X 35	20	29	G1/4	M14X 1.5	M18X 1.5	15	87	94	38	64.5		12
10	36.5X41	20	29	G3/8	M18X 1.5	M18X 1.5	16	98	105	45φ5	71		12
12	37 X 42	26	37.5	G1/2	M22X 1.5	M22X 1.5	17.5	105	113	48	81		14
16	45X 54	26	37.5	G3/4	M27X2	M22X 1.5	22.5	124	134.5	56.5	89		16
20	57 X59	38	50	G1	M 33X2	M 36X 1.5	26	162.5	178.5	80	128	19	18
25	63X70	38	50	Gl l/4	M42X2	M36X 1.5	30	170	186.5	98	144	19	20
30	73X 80	38	50	G l l/2	M48 X2	M36 X 1.5	35	180	195.5	105	145	19	22

Unit dimensions

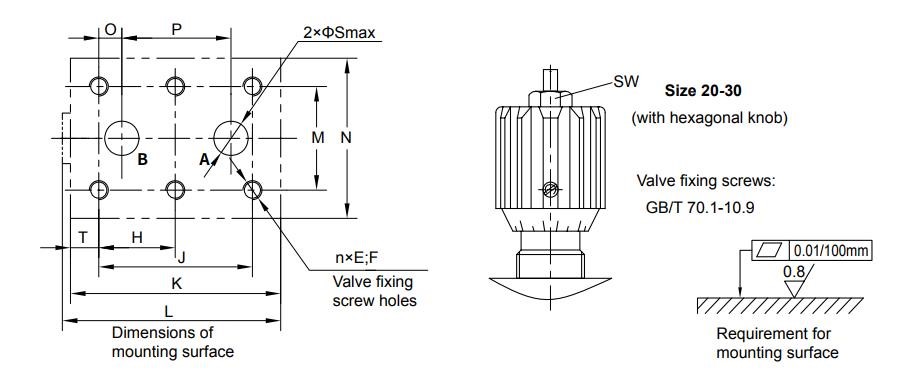

· Sub-plate mounting (Type DVP)

Size	A	B	C	D	n	E	F	G	H	J	K	L	M	N
6	66	61.5	10	18	4	M6	12	24	-	19	38	41	28.5	41.5
8	89.6	82.7	21	30.5	4	M6	12	29	-	35	63.5	67	33.5	46
10	104	96	29.5	40	4	M6	12	29	-	33.5	70	72.3	38	51
12	109	100.5	29	38	4	M6	12	37.5	-	38	80	82	44.5	57.5
16	133	122.3	41	52	6	M8	16	37.5	38	76	104	107	54	70
20	177	161	49	61	6	M8	16	50	47.5	95	127	129	60	76.5
25	185	170	55	68.5	6	M10	20	50	60	120	165	168	76	100
30	195	179	63	79	6	M12	24	50	71.5	143	186	186	92	115

Size		P	R	5	T	V	W	SW	Vale fixing screw
6	1.6	16	O-ring 7 X 1.5	5	9.5	18.5	M12X 1.25	-	M6 X 20
8	4.5	25.5	O-ing12.3x2.4	8	14.3	31	M18X 1.5	-	M6X30
10	4	25.5	O-ing12.3x2.4	10	17	31.5	M18 X 1.5	-	M6X40
12	4	30	O-ring15X2.65	12	21	36.5	M22X 1.5	-	M6 X 40
16	11.4	54	O-ing19x3	15	14	49	M22X 1.5	-	M8X55
20	19	57	O-ing 30x 3	20	17	47	M36X 1.5	19	M8X60
25	20.6	79.5	O-ring 32X 3	25	15	77	M36X 1.5	19	M10 X 70
30	23.8	95	O-ing 34.52x 3.53	30	15	85	M36 X 1.5	19	M12X80

Unit dimensions

· Sub-plate mounting (Type DRVP)

Size	A	B	C	D	n	E	F	G	H	J	K	L	M	N
6	67	62.5	9	19	4	M6	12	24	-	19	41.5	43	28.5	41.5
8	90	83	19	31	4	M6	12	29	-	35	63	67	33.5	46
10	103	95	30	38.5	4	M6	12	29	-	33.5	70	72	38	51
12	112	103.5	29	41	4	M6	12	37.5	-	38	80	84	44.5	57.5
16	132	122	41	51	6	M8	16	37.5	38	76	104	107	54	70
20	176	161	48	60	6	M8	16	50	47.5	95	127	13	1 60	76.5
25	186	171	55	70	6	M10	20	50	60	120	165	169	76	100
30	195	180	63	79	6	M12	24	50	71.5	143	186	190	92	115

Size	O	P	R	S	T	V	W	SW	Vale fixing screw
6	1.6	16	O-ring 7 X 1.5	5	6.4	10	M12X 1.25	-	M6 X 20
8	4.5	25.5	O-ring12.3 X2.4	8	9.3	25.8	M18X1.5	-	M6 X 3O
10	4	25.5	O-ring13.2 X2.4	10	10	24.5	M18X1.5	-	M6 X 40
12	4	30	O-ring15 X2.65	12	21	31.5	M22 X 1.5	-	M6 X 40
16	11.4	54	O-ring19 X3	15	14	41	M22 X1.5	-	M8 X 55
20	19	57	O-ring 30 X3	20	17	44	M36X1.5	19	M8 X 60
25	20.6	79.5	O-ring 32 X 3	25	15	62	M36X1.5	19	M10 X 70
30	23.8	95	O-ring34.52 X 3.53	30	15	72	M36X1.5	19	M12 X 80
