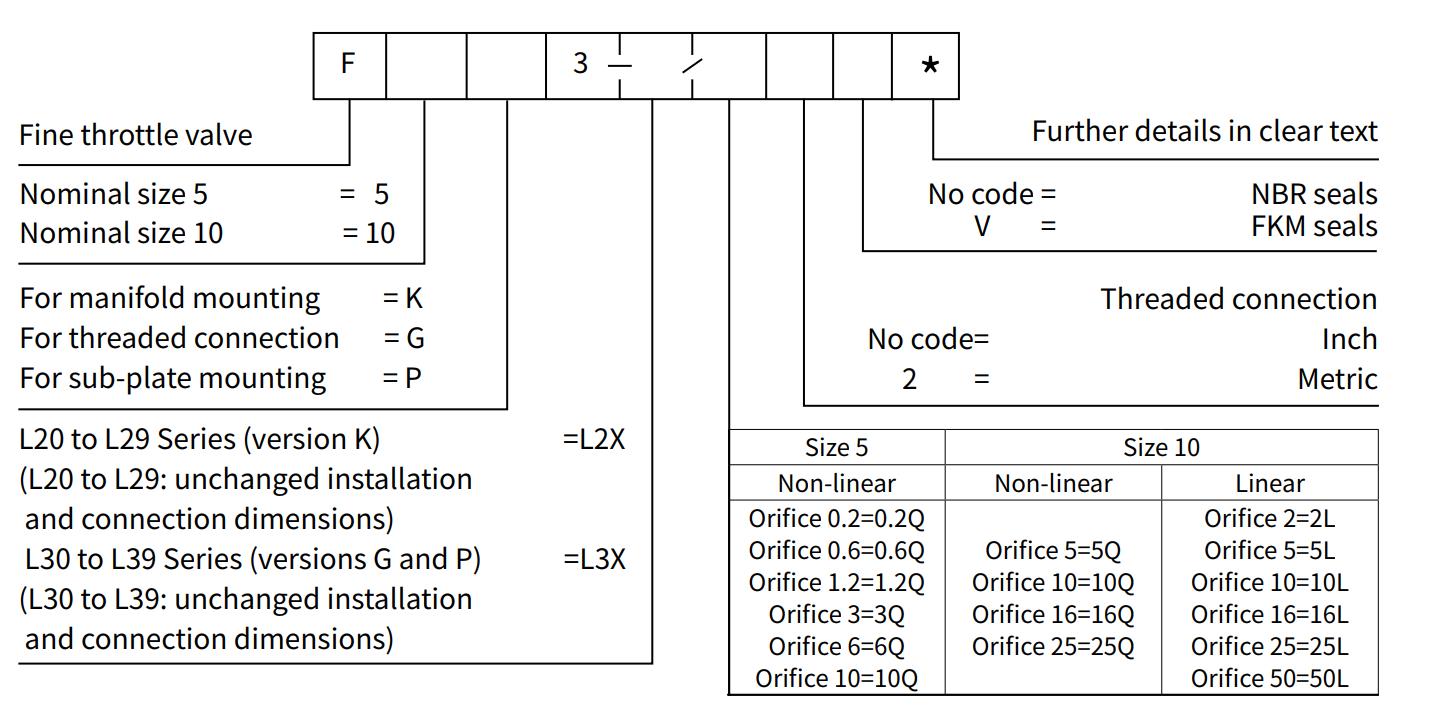

Industrial hydraulic type F precision throttle valve 80 L/min threaded/sub-plate 210 Bar 5/10

Features

- Sub-plate mounting

- Threaded connections

- Manifold mounting

- Lockable rotary knob

Function and configuration

Flow control valves, type F are fine throttle valves with orifice . They are basically comprised of housing (1), adjustment element (2) and thin-blade orifice (3). Throttling flow is almost independent of temperature variations. Throttling flow from A to B is carried out at orifice aperture (4). The throttle opening is adjusted by rotating cylindrical spool (5). The low dependence on temperature is due to an thin-blade orifice.

Specification

Technical data

Unit dimensions (Dimensions in mm)

· For thread connection and sub-plate mounting

· For manifold mounting

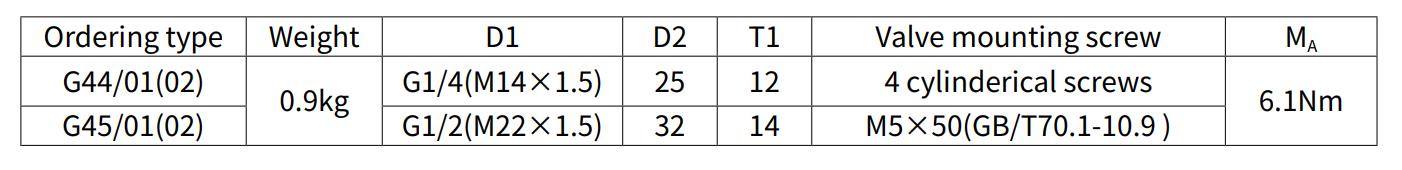

· Sub-plate

1 Valve mounting surface

2 Surface ground

3 Valve mounting holes

4 Ø20 keep free for valve function

5 Front panel cut-out
