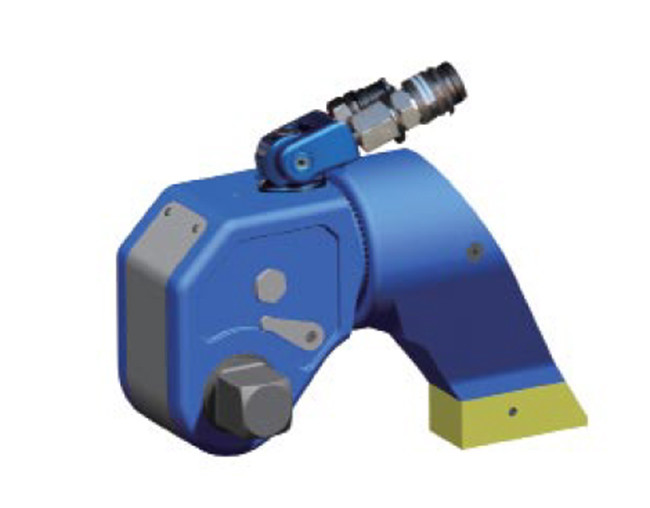

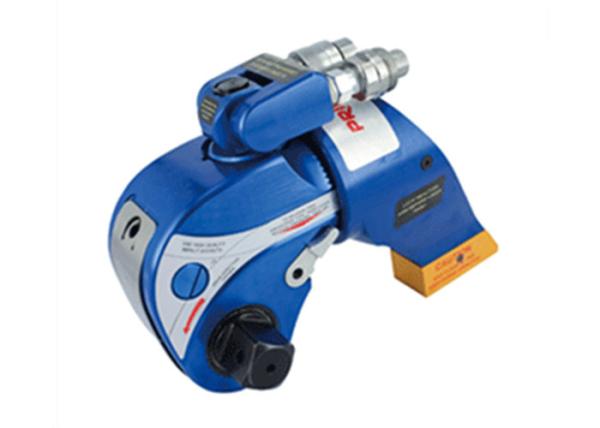

PMU drive shaft hydraulic wrench

Features

The ratchet and pawl are coarse-toothed and have sufficient safety redundancy at full load.
Adopting aerospace high-tech aluminum-titanium alloy material, so it has high strength and light weight
One-piece body, 360°×180° tubing rotary joint
360 degree 60-point fine-tuning reaction arm, so it is able to adapt to a variety of complex applications
Unique anti-reverse check engine to overcome the phenomenon of wrench reversal caused by bolt deformation rebound
There is a crisp clinking sound for each trip, which is easy for the operator to control.

Details

Specifications

Type	Drive shaft size(in)	Recommended use of metric bolts	Minimum torque (Nm)	Maximum torque (Nm)	Output accuracy	Repeatability accuracy	Weight (Kg)
PMU-1	3/4	M8-M30	182	1820	±3%	100%	1.8
PMU-3	1	M16-M42	425	4250	±3%	100%	3.8
PMU-5	1-1/2	M20-M48	741	7415	±3%	100%	6.5
PMU-10	1-1/2	M22-M56	1526	15260	±3%	100%	11.3
PMU-20	2-1/2	M48-M80	2678	26785	±3%	100%	16.4
PMU-25	2-1/2	M52-M90	3575	35758	±3%	100%	19.7
PMU-35	2-1/2	M64-M120	5160	51600	±3%	100%	35.2
