Brand Name : | OEPOCH |
Model Number : | OE-YQKLG |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 500 set / 30 days |
Delivery Time : | 5-30 days upon order quantity |
Floor bow riveting machine metal parts precision riveting single arm hydraulic press 4-60T
Product profile
YQKLG four-column precision hydraulic press is widely used in hydraulic forming and assembly in various industries. It is especially suitable for process assembly, pressure assembly, assembly crimping, motor assembly, bushing installation, pin riveting, metal product stamping and pressing of metal plastic electronic products. Printing, pressing, pressing, punching, punching, bending, squeezing, blanking, etc.
Specifications
Product Type | (Unit) | YQKLG-10T | YQKLG-20T | YQKLG-30T | YQKLG-40T | YQKLG-50T | YQKLG-60T |
Public pressure | ton | 4-10 | 8-20 | 10-30 | 15-40 | 20-50 | 25-60 |
Maximum stroke | Mm | 250 | 250 | 300 | 300 | 300 | 300 |
Opening height | Mm | 400 | 400 | 500 | 500 | 500 | 500 |
Gu deep | Nm | 175 | 200 | 200 | 225 | 225 | 225 |
Upper Plate Size | Mm | 400*300 | 450*350 | 450*350 | 500*400 | 500*400 | 500*400 |
Working face Area | Mm | 450«350 | 500*400 | 500*400 | 550*450 | 550*450 | 550*450 |
Drop speed | Nm | 180 | 180 | 180 | 180 | 160 | 160 |
Rise speed | Nm | 160 | 160 | 160 | 160 | 140 | 140 |
Attack speed | Mm | 20 | 20 | 20 | 20 | 20 | 20 |
Power of the Machine | Kw | 2.25 | 3.75 | 3.75 | 3.75 | 3.75 | 5.5 |
Power | V | 380 | 380 | 380 | 380 | 380 | 380 |
Machine weight | Kg | 700 | 950 | 1300 | 1600 | 1800 | 2100 |

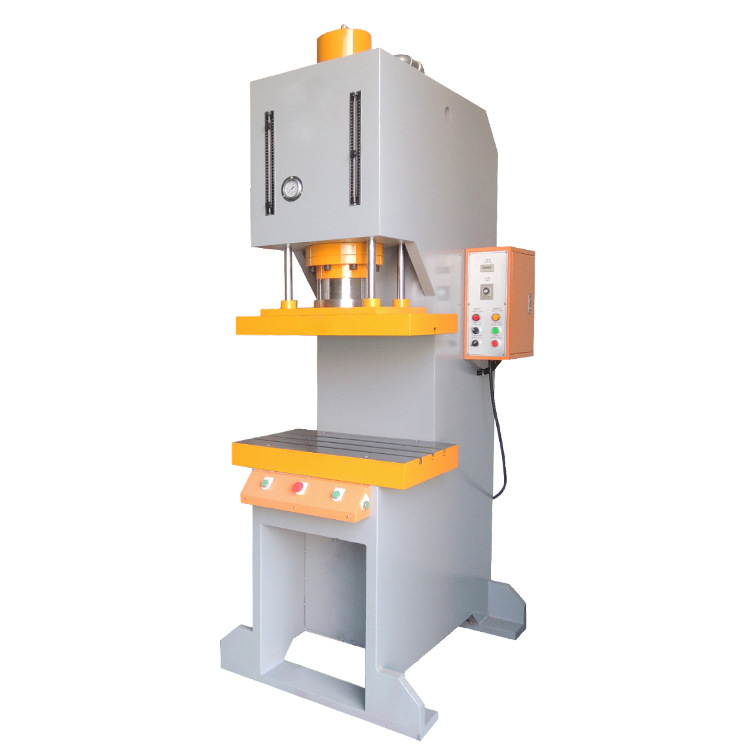

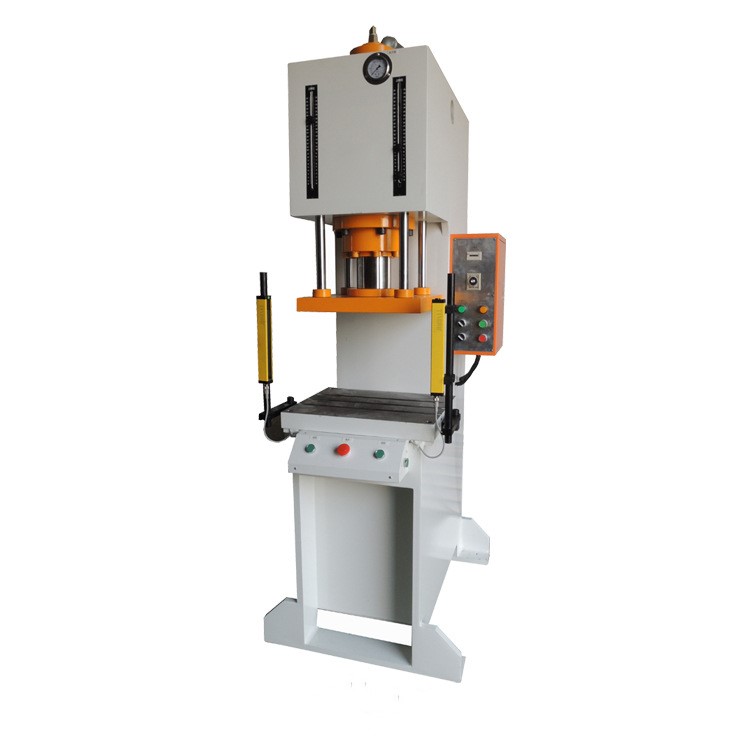

Product display
![]() |
