Industrial all-electric hydraulic forklifts Forward double gantry
Double cylinders Rechargeable stacker 1.5T
Product profile
The whole electric hydraulic forklift has a compact structure, low
center of gravity, excellent steering performance, good
passability, wide application, and the following advantages,
The handle is stable and flexible;
The US imports AC control system, which is responsive, reduces
maintenance and noise, and has strong control capability from low
speed to high speed or high speed to low speed;
Large capacity battery to ensure strong and lasting power;
Low voltage protection to extend battery life;
Adopt vertical drive wheel, low noise, high transmission
efficiency, convenient installation and maintenance;
The instrument panel is equipped with a power meter, emergency stop
button, power lock, triple multi-way control valve operation
handle, reasonable layout, and ergonomics;
It is easy to maintain. You only need to open the power box cover
to maintain the battery. The front tank is convenient for filling
the hydraulic oil.
Specifications
| No | Rated Capacity | Q(kg) | 1500 |
| 1 | Load Center | C(mm) | 500 |
| 2 | wheel base | L1(mm) | 1530 |
| 3 | Front suspension base | mm | 430 |
| 4 | G.W. (including the battery) | kg | 1830 |
| 5 | Front Tire | mm | φ250*80 |
| 6 | Size of the driving wheel | mm | φ245*75 |
| 7 | Real wheel base | mm | 985 |
| 8 | Mast lowered height | mm | 2120/1620/1880/2120 |
| 9 | Lifting height | H1(mm) | 1600/2000/2500/3000 |
| 10 | Overall Length | L(mm) | 2522 |
| 11 | Overall width | B(mm) | 1135 |
| 12 | Outer width of fork | B2(mm) | 680 |
| 13 | Forward lead distance | L5(mm) | 500 |
| 14 | Turning radius (with footboard) mast not front lead 1950mm | mm | 2230 |
| 15 | Travel Speed (Laden/Unladen) | km/h | 6.1/6.9 |
| 16 | Lifting Speed without load | mm/s | Adjustable |
| 17 | Falling Speed | mm/s | Adjustable |
| 18 | Tread front speed with load | mm/s | Adjustable |
| 19 | Gradeability laden/unladen | % | 6/10 |
| 20 | Lifting Motor | kw | 3.0 |
| 21 | Driving Motor | kw | 2.2 AC |
| 22 | Control system | | AC control |
| 23 | Minimum height of fork | mm | 90 |
| 24 | Braking | | Electromagnetic brake |

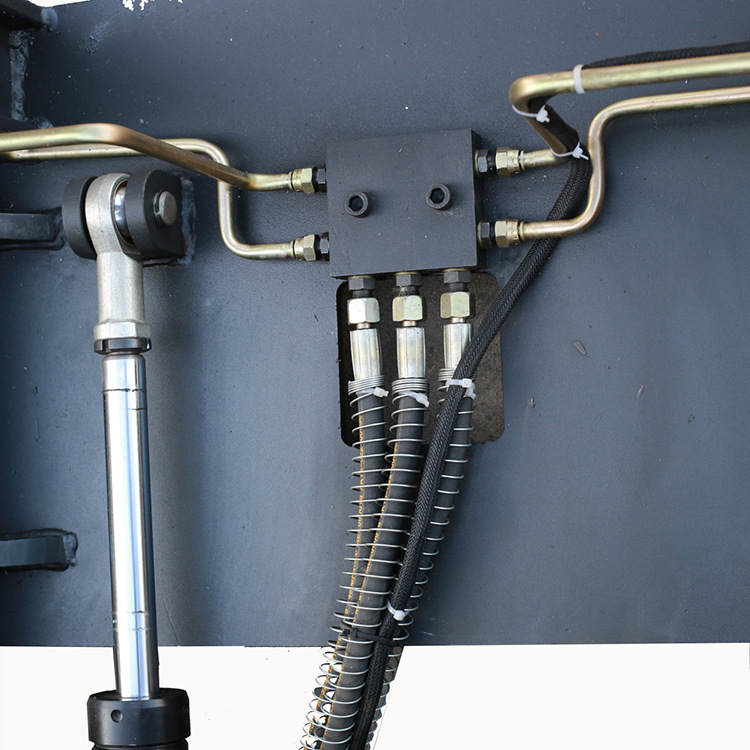

Product display
