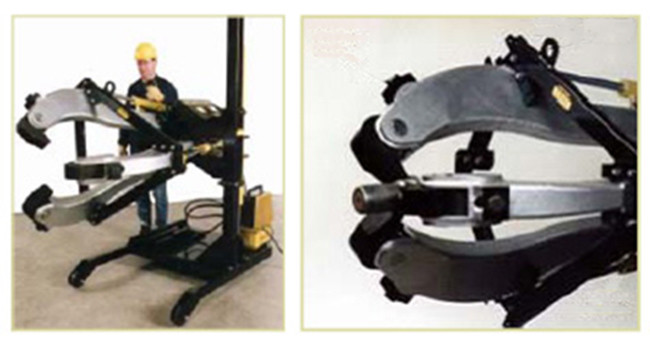

50T vehicle-mounted hydraulic puller

Features

• Puller has 25mm horizontal adjustment, 5 degree vertical adjustment, automatic alignment function.
• The solenoid valve fully controls the opening and closing of the claws, and the drawing work can be completed at one time through a button box (the vertical height of the puller shaft, the opening and closing of the claws, and the lifting of the workpiece by the hydraulic cylinder).
• Using an electric hydraulic pump, the 50-ton hydraulic cylinder takes only 30 seconds to reach the full stroke.
• 50-ton hydraulic cylinder adopts double-acting form, so it has fast return stroke, high working efficiency and long service life.
• The claws are made of forged steel, which is strong and durable.
• Using 220V-1.1KW electric hydraulic pump as power source.
• The puller can be easily configured as 2 or 3 claws.
• The car has two universal wheels, which can be self-locking.
• 2-stage hydraulic pump with flow rate of 4 L/min@1.4MPa, 0.6 L/min@70MPa.

Specifications

Product dispaly
