    Ss Instrumentation Control Valves , High Temp Electric Actuated Four Way Ball Valve

    Ask Lasest Price
    Brand Name : LINUO
    Model Number : Four-way ball valve
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50 set / 30 days
    Delivery Time : 5-30 days upon order quantity
    • Product Details
    • Company Profile

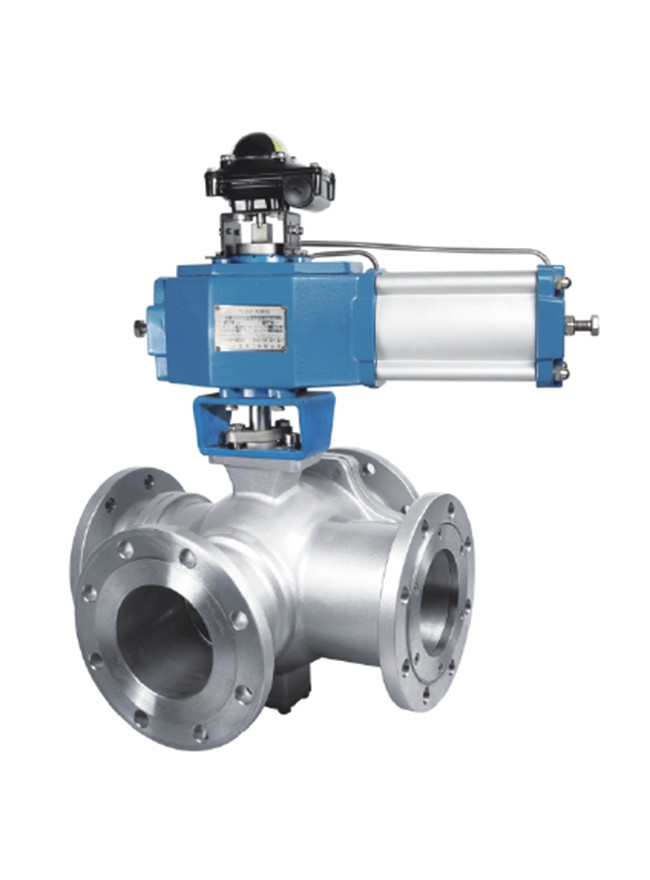

    Ss Instrumentation Control Valves , High Temp Electric Actuated Four Way Ball Valve

    Four-way ball valve


    Application

    The four-way ball valve enables four orthogonal pipes to communicate with each other in an industrial pipeline to change the flow direction. It is widely used in industrial sectors and automatic control systems such as metallurgy, mining, petroleum, chemical, electric power, light industry, shipbuilding, etc. It is suitable for working conditions of fluids, gases and dust media.

    Ss Instrumentation Control Valves , High Temp Electric Actuated Four Way Ball Valve

    Feature

    1, The fluid resistance is small, and its resistance coefficient is equal to the pipe length of the same length.

    2, Close and reliable. At present, the sealing surface material of the ball valve has a good sealing property of PTFE, and it is also possible to use a hard-sealed valve seat weld alloy to improve wear resistance. A coil spring is used to provide a sealing force to ensure sealing performance.

    3, Using the upper and lower valve stem fixed design, which there are upper and lower bearing positioning, ensure good mechanical stability and small starting torque. The bearing material is made of composite material, and its rotating shaft bearing surface is treated with sintered PTFE, which has superior wear resistance and self-lubricating function. This avoids the seizure of the valve during long-term use.

    4, It is easy to operate and can be opened and closed quickly. From full-open to full-close, the spool rotates 90 degrees. Manual, pneumatic and electric actuators can be installed to facilitate remote control.

    5. When fully open or fully closed, the sealing surface of the ball and valve body is isolated from the medium. When the medium passes, it will not cause erosion of the sealing surface of the valve.

    6, Easy to maintain. The ball valve has a simple structure, and the sealing ring is generally movable, so that it is convenient to disassemble and replace.


    Technical Parameters

    Nominal diameter (DN):15,20,25,32,40,50,65,80,100,125,150,200,300,350,400.

    Nominal pressure (PN): 1.0,1.6,2.5,4.0,6.4(Mpa)ASME150,300LB.

    Connection form: flange type.

    Temperature range: -29~150℃,-40~425℃

    Pressure test: The shell test pressure is 1.5 times the nominal pressure. The seal test is 1.1 times the nominal pressure. The test medium is water.

    Leakage: Hard seal: Meet Class F of the ISO5208 seal rating, equivalent to the ANSI/FCI0.2IV x 1/100 standard.

    Soft seal: Class ANSI/FCI-70.2VI.


    Ss Instrumentation Control Valves , High Temp Electric Actuated Four Way Ball Valve


    Parts List

    NunberNameQuantity(Piece)Material
    1Valve body1WCB,CF8,CF8M
    2Bonnet1WCB,CF8,CF8M
    3Spool1WCB,CF8M+Hard chromium plating or spray welding Stelle
    4Valve seat2SS304,SS316+Hard chromium plating or spray welding Stelle
    5Bottom cover1WCB,CF8,CF8M
    6O-ring1EPDM,Fluororubber
    7Lower stem1SS304,SS316,20Cr13,17-4PH
    8Self-lubricating bearing1Suitable material
    9Hex nuts4SS304
    10Hexagon nutOn demandSS304
    11Support ring gland1SS304,SS316
    12Support ring1SS304,SS316
    13SpringOn demand17-4PH,X-750
    14Valve seat2SS304,SS316+Hard chromium plating or spray welding Stelle
    15V-type packingA groupPTFE
    16Self-lubricating bearing1Suitable material
    17Flat key245#,SS304,SS316
    18Upper stem1SS304,SS316,20Cr13,17-4PH
    19Packing gland1WCB,CF8,CF8M
    20Double nut2SS304
    21Hex nuts2SS304
    22Middle flange washer1PTFE
    23O-ring1EPDM,Fluororubber
    24Double nutOn demandSS304
    25Hex nutsOn demandSS304

    Actuator configuration table

    DNZSQ double actingDNZSQ double acting
    25ZSQ41-φ80-φ16125ZSQ60-φ160-φ30
    32ZSQ41-φ80-φ16150ZSQ80-φ200-φ40
    40ZSQ50-φ100-φ20200ZSQ80-φ250-φ45
    50ZSQ50-φ100-φ20250ZSQ130-φ300-φ60
    65ZSQ50-φ125-φ25300ZSQ130-φ350-φ70
    80ZSQ50-φ125-φ30350ZSQ160-φ400-φ80
    100ZSQ60-φ160-φ30400ZSQ160-φ450-φ80

    Double acting actuator configuration of conventional pressure PN16.


    LL type four-way ball valve flow diagram

    Ss Instrumentation Control Valves , High Temp Electric Actuated Four Way Ball Valve


    Pneumatic four-way ball valve outline drawing

    Ss Instrumentation Control Valves , High Temp Electric Actuated Four Way Ball Valve

    TypeNominal diameterSize (mm)
    DN(mm)LhHL1L2
    Q6465022083340146450
    6525093352146464
    80290100370146464
    100370150427214570
    125380163440214570
    150510192506200700
    200580232573200700
    2506702786923001015
    3007603507603001015
    3508504008503951075
    4009804609703951075

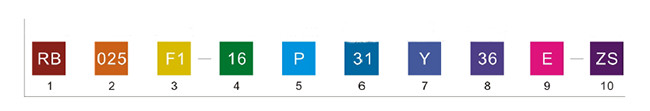

    Model description

    Ss Instrumentation Control Valves , High Temp Electric Actuated Four Way Ball Valve

    1.Valve type

    RE

    Four-way ball valve

    2.Nominal diameter

    GB/American Standard Series
    015 DN15 1/2″065 DN65 1-1/2″250 DN250 10″
    020 DN20 3/4″080 DN80 2″300 DN300 12″
    025 DN25 1″100 DN100 3″350 DN350 14″
    032 DN32 1-1/4″125 DN125 5″400 DN400 16″
    040 DN40 1-1/2″150 DN150 6″
    050 DN50 2″200 DN200 8″

    3. Connection method

    F1 Flange type (RF side)F2 Flange type (MF side)

    4. Nominal pressure, pound

    GB seriesAmerican standard seriesJapanese standard series
    10 PN1001 150LB1K 10K
    16 PN1603 300LB2K 20K
    25 PN25
    40 PN40
    64 PN64

    5. Body material

    Material
    CWCBGCG8M
    PCF8BLCB
    QCF3DLCC
    MCF8MWWC6
    LCF3M

    6. Spool material and surface treatment

    Spool materialSurface treatment
    3CF80Polishing
    4CF31Chrome
    5CF8M3Spraying nickel-based alloy
    6CF3M4Spray welding tungsten carbide
    7CG8M5Ion nitridation
    6Spray-welded Stilerite Alloy

    7. Seat seal form

    Ordinary hard sealY
    High temperature structural hard sealG
    Soft sealR

    8. Seat material and surface treatment

    Hard sealSoft seal
    Seat materialsurface treatmentMaterial
    3 3040PolishingPOPTFE
    4 304L1ChromeROPTFE
    5 3163Spraying nickel-based alloyNONYLON
    6 316L4Spray welding tungsten carbideLOPPL
    7 3175Ion nitridationKOPEEK
    6Spray-welded Stilerite Alloy

    9. O-ring material

    Material and operating temperature
    EEPDMoperating temperature -29℃~120℃
    VVITONoperating temperature -29℃~200℃
    APFAoperating temperature -40℃~230℃
    FFEPoperating temperature -40℃~160℃
    GGraphite ring(High temperature structure)operating temperature -40℃~425℃

    10. Drive mode

    ZSPneumatic double acting
    ZDKPneumatic single acting air opening
    ZDBPneumatic single acting air closing
    ZKElectric
    SDManual
