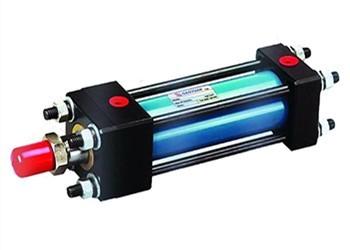

Steel industry CD/CG0 series heavy duty hydraulic cylinder 25/35MPa φ40-320MM pull rod type

The CD/CG series hydraulic cylinders are composed of 14 types of cylinder diameters and 28 types of single-piston double-acting differential cylinders in two speed ratios. In addition, the cylinder head flange, the intermediate shaft pin and the base can also be used as a double-piston double-acting constant-speed cylinder, plus 480 varieties of 28 specifications with or without buffering and appeal. The installation form and dimensions are in line with German steel mills and IS03320 standards, and are particularly suitable for harsh and heavy-duty working conditions. Widely used in industrial sectors such as steel, foundry, forging and machinery manufacturing.

CD indicates differential cylinder

CG stands for constant velocity cylinder

250 means the working pressure is 25MPa

350 means the working pressure is 35MPa

Installation form, A=tail single ear strap bushing, B=tail single ear joint bearing, C=front flange type, D=rear flange type, E=intermediate shaft pin type, F=base type

Technical data
