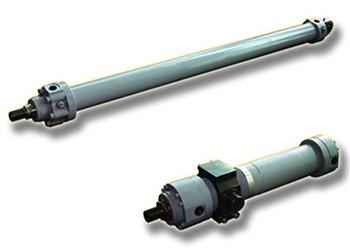

CDLI series engineering cylinder Φ25-Φ500mm stroke length up to 10m 16MPa Parker/Markel seal

Product profile

CDLI series engineering hydraulic cylinder is an engineering cylinder that replaces Rexroth related products. The cylinder diameter is from Φ25 to Φ500mm, the piston rod diameter is Φ14 to Φ250mm, the stroke length is up to 10m, the nominal pressure is 16MPa, and the maximum working pressure is 24MPa. The seals are all Parker and Markel. The German company's products are easy to install, reliable in operation, easy to assemble and disassemble, and easy to maintain. They are suitable for various industries such as construction machinery, mining, lifting and transportation, port, metallurgy and so on. In the extreme position of the CDLI series engineering hydraulic cylinder (bore diameter 40~500), the anti-high pressure type inductive proximity switch can be installed, the device is compact, the installation and adjustment are convenient, and the cumbersome link of designing and installing the limit switch on the moving mechanism is omitted. Great convenience for design and installation adjustments. The displacement sensor can be arranged on the flanged fixed cylinder on the cylinder head and the bottom of the cylinder. The hydraulic cylinder can accurately stop according to the working conditions, fully utilize the mechanization and automation functions of the hydraulic cylinder, and realize high-speed and precise industrial automatic control.

Technical data
