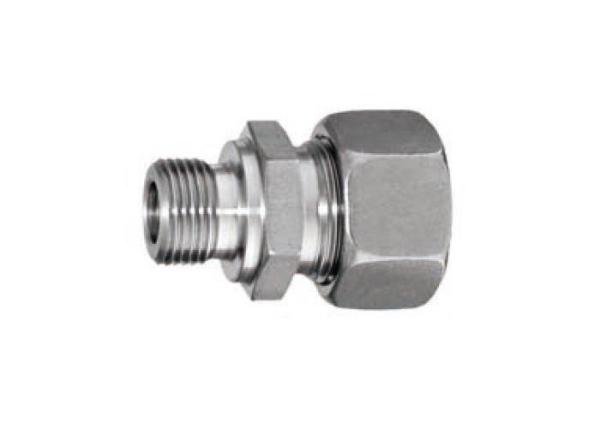

Stainless Steel Stud Couplings Hydraulic Pipe Fittings BSPP Inch Thread With Hard Seal

Hydraulic pipe fittings stainless steel stud couplings BSPP Inch thread with hard seal GE-UNF series

The straight-through fitting G thread has a hard seal. The other end is a metric thread, 24° taper angle, which can be connected to the DKO hose connector in addition to the combination of the welded head and the bite type joint.

Specifications

Series	Pressure	D1	G	L1	L2	i	SW1	SW2	O-Ring	Type
L	315	6	7/16"-20UNF	23,5	9,0	9,2	17	14	8,92 x 1,83	C-GE-L06-7/16"UNF-SS304
L	315	6	1/2"-20UNF		10,0	9,2	17	14	10,52 x 1,83	C-GE-L06-1/2"UNF-SS304
L	315	6	9/16"-18UNF			10,0	19	14	11,90 x 1,98	C-GE-L06-9/16"UNF-SS304
L	315	8	7/16"-20UNF	25,0	10,0	9,2	17	17	8,92 x 1,83	C-GE-L08-7/16"UNF-SS304
L	315	8	1/2"-20UNF	25,0	10,0	9,2	17	17	10,52 x 1,83	C-GE-L08-1/2"UNF-SS304
L	315	8	9/16"-18UNF	25,0	10,0	10,0	19	17	11,90 x 1,98	C-GE-L08-9/16"UNF-SS304
L	315	10	7/16"-20UNF	26,0	11,0	9,2	17	19	8,92 x 1,83	C-GE-L10-7/16"UNF-SS304
L	315	10	1/2"-20UNF	26,0	11,0	9,2	17	19	10,52 x 1,83	C-GE-L10-1/2"UNF-SS304
L	315	10	9/16"-18UNF	26,0	11,0	10,0	19	19	11,90 x 1,98	C-GE-L10-9/16"UNF-SS304
L	315	10	3/4"-16UNF	30,5	13,0	11,2	24	19	16,36 x 2,20	C-GE-L10-3/4"UNF-SS304
L	315	12	9/16"-18UNF	26,0	12,5	10,0	19	22	11,90 x 1,98	C-GE-L12-9/16"UNF-SS304
L	315	12	3/4"-16UNF	27,0	12,5	11,2	24	22	16,36 x 2,20	C-GE-L12-3/4"UNF-SS304
L	315	12	7/8"-14UNF	27,5	13,5	12,7	27	22	19,18 x 2,46	C-GE-L12-7/8"UNF-SS304
L	315	15	9/16"-18UNF	29,0	14,0	10,0	24	27	11,90 x 1,98	C-GE-L15-9/16"UNF-SS304
L	315	15	3/4"-16UNF	29,0	14,0	11,2	24	27	16,36 x 2,20	C-GE-L15-3/4"UNF-SS304
L	315	15	7/8"-14UNF	29,0	14,0	12,7	27	27	19,18 x 2,46	C-GE-L15-7/8"UNF-SS304
L	315	18	3/4"-16UNF	31,0	14,5	11,2	27	32	16,36 x 2,20	C-GE-L18-3/4"UNF-SS304
L	315	18	7/8"-14UNF	31,0	14,5	12,7	27	32	19,18 x 2,46	C-GE-L18-7/8"UNF-SS304
L	315	18	1 1/16"-12UN	31,0	14,5	15,0	32	32	23,47 x 2,95	C-GE-L18-1 1/16"UN-SS304
L	160	22	3/4"-16UNF	33,0	16,5	11,2	32	36	16,36 x 2,20	C-GE-L22-3/4"-UNF-SS304
L	160	22	7/8"-14UNF	33,0	16,5	12,7	32	36	19,18 x 2,46	C-GE-L22-7/8"UNF-SS304
L	160	22	1 1/16"-12UN	33,0	16,5	15,0	32	36	23,47 x 2,95	C-GE-L22-1 1/16"UN-SS304
L	160	22	1 5/16"-12UN	33,0	16,5	15,0	41	36	29,74 x 2,95	C-GE-L22-1 5/16"UN-SS304
L	160	28	7/8"-14UNF	34,0	17,5	12,7	41	41	19,18 x 2,46	C-GE-L28-7/8"UNF-SS304
L	160	28	1 1/16"-12UN	34,0	17,5	15,0	41	41	23,47 x 2,95	C-GE-L28-1 1/16"UN-SS304
L	160	28	1 5/16"-12UN	34,0	17,5	15,0	41	41	29,74 x 2,95	C-GE-L28-1 5/16"UN-SS304
L	160	28	1 5/8"-12UN	34,0	17,5	15,0	50	41	37,46 x 3,00	C-GE-L28-1 5/8"UN-SS304
L	160	35	1 1/16"-12UN	39,0	17,5	15,0	46	50	23,47 x 2,95	C-GE-L35-1 1/16"UN-SS304
L	160	35	1 5/16"-12UN	39,0	17,5	15,0	46	50	29,74 x 2,95	C-GE-L35-1 5/16"UN-SS304
L	160	35	1 5/8"-12UN	39,0	17,5	15,0	50	50	37,46 x 3,00	C-GE-L35-1 5/8"UN-SS304
L	160	42	1 5/8"-12UN	42,0	19,0	15,0	55	60	37,46 x 3,00	C-GE-L42-1 5/8"UN-SS304
L	160	42	1 7/8"-12UN	42,0	19,0	15,0	55	60	43,69 x 3,00	C-GE-L42-1 7/8"UN-SS304
Series	Pressure	D1	G	L1	L2	i	SW1	SW2	O-Ring	Type
S	630	6	7/16"-20UNF	28,0	13,0	9,2	17	17	8,92 x 1,83	C-GE-S06-7/16"UNF-SS304
S	630	6	9/16"-18UNF			10,0	19	17	11,90 x 1,98	C-GE-S06-9/16"UNF-SS304
S	630	8	7/16"-20UNF	30,0	15,0	9,2	17	19	8,92 x 1,83	C-GE-S08-7/16"UNF-SS304
S	630	8	1/2"-20UNF	30,0	15,0	9,2	17	19	10,52 x 1,83	C-GE-S08-1/2"UNF-SS304
S	630	8	9/16"-18UNF			10,0	19	19	11,90 x 1,98	C-GE-S08-9/16"UNF-SS304
S	630	10	9/16"-18UNF	31,0	15,5	10,0	19	22	11,90 x 1,98	C-GE-S10-9/16"UNF-SS304
S	630	10	3/4"-16UNF	31,0	15,0	11,2	24	22	16,36 x 2,20	C-GE-S10-3/4"UNF-SS304
S	630	12	9/16"-18UNF		14,5	10,0	22	24	11,90 x 1,98	C-GE-S12-9/16"UNF-SS304
S	630	12	3/4"-16UNF	33,5	17,5	11,2	24	24	16,36 x 2,20	C-GE-S12-3/4"UNF-SS304
S	630	12	7/8"-14UNF	32,5	14,8	12,7	27	24	19,18 x 2,46	C-GE-S12-7/8"UNF-SS304
S	630	14	9/16"-18UNF	37,0	19,0	10,0	24	27	11,90 x 1,98	C-GE-S14-9/16"UNF-SS304
S	630	14	3/4"-16UNF	37,0	19,0	11,2	24	27	16,36 x 2,20	C-GE-S14-3/4"UNF-SS304
S	400	16	3/4"-16UNF	37,0	18,5	11,2	27	30	16,36 x 2,20	C-GE-S16-3/4"UNF-SS304
S	400	16	7/8"-14UNF	33,5	15,5	14,0	30	30	19,18 x 2,46	C-GE-S16-7/8"UNF-SS304
S	400	16	1 1/16"-12UN	37,0	18,5	15,0	32	30	23,47 x 2,95	C-GE-S16-1 1/16"UN-SS304
S	400	20	3/4"-16UNF	42,0	20,5	11,2	32	36	16,36 x 2,20	C-GE-S20-3/4"UNF-SS304
S	400	20	7/8"-14UNF	42,0	20,5	12,7	32	36	19,18 x 2,46	C-GE-S20-7/8"UNF-SS304
S	400	20	1 1/16"-12UN	42,0	20,5	15,0	32	36	23,47 x 2,95	C-GE-S20-1 1/16"UN-SS304
S	400	20	1 5/16"-12UN		22,5	15,0	41	36	29,74 x 2,95	C-GE-S20-1 5/16"UN-SS304
S	400	25	1 1/16"-12UN	47,0	23,0	15,0	41	46	23,47 x 2,95	C-GE-S25-1 1/16"UN-SS304
S	400	25	1 5/16"-12UN	47,0	23,0	15,0	41	46	29,74 x 2,95	C-GE-S25-1 5/16"UN-SS304
S	400	30	1 1/16"-12UN	50,0	23,5	15,0	46	50	23,47 x 2,95	C-GE-S30-1 1/16"UN-SS304
S	400	30	1 5/16"-12UN	50,0	23,5	15,0	46	50	29,74 x 2,95	C-GE-S30-1 5/16"UN-SS304
S	400	30	1 5/8"-12UN	50,0	23,5	15,0	50	50	37,46 x 3,00	C-GE-S30-1 5/8"UN-SS304
S	315	38	1 5/8"-12UN	57,0	26,0	15,0	55	60	37,46 x 3,00	C-GE-S38-1 5/8"UN-SS304
S	315	38	1 7/8"-12UN	57,0	26,0	15,0	55	60	43,69 x 3,00	C-GE-S38-1 7/8"UN-SS304

Materials Description: These models are made of stainless steel, the suffix plus SS304 means Materials is SS304 , plus SS316 means Materials is SS316, plus CF means materials is carbon steel.
